11CEY25F243B

Part Number
11CEY25F243B
Manufacturer CTS Corporation
Other Part Numbers
119-11CEY25F243B-ND
119-11CEY25F243B

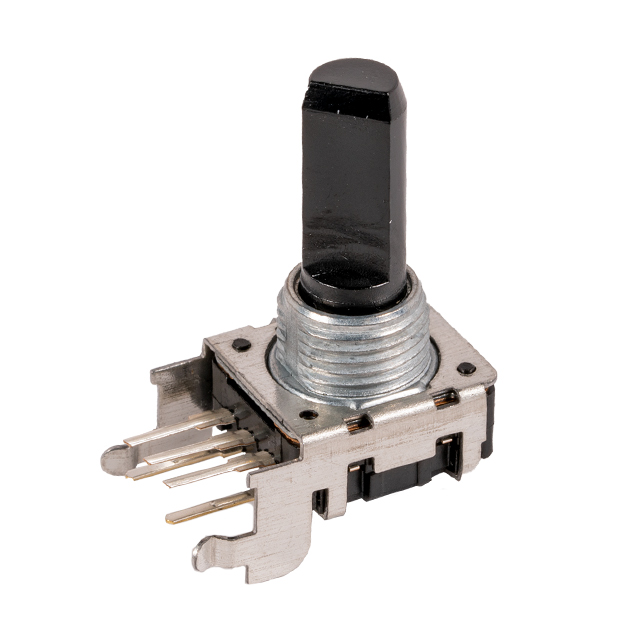

Description ROT ENCODER MECHANICAL 24PPR WSW
Detailed Description Rotary Encoder Mechanical 24 Quadrature, 2-Bit Right Angle
Manufacturer Standard Lead Time 36 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer CTS Corporation
Series
11CE
Packaging
Tray
Part Status Active
Output Type Quadrature, 2-Bit
Mounting Type Panel, PCB Through Hole
Orientation Right Angle
Termination Style PC Pin
Voltage - Supply 5V
Encoder Type Mechanical
Detent Yes
Pulses per Revolution 24
Actuator Type 6mm Dia Flatted End
Built in Switch Yes
Rotational Life (Cycles Min) 30K
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets 11CEY25F243B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8543.70.4500
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 55

Can ship immediately.
