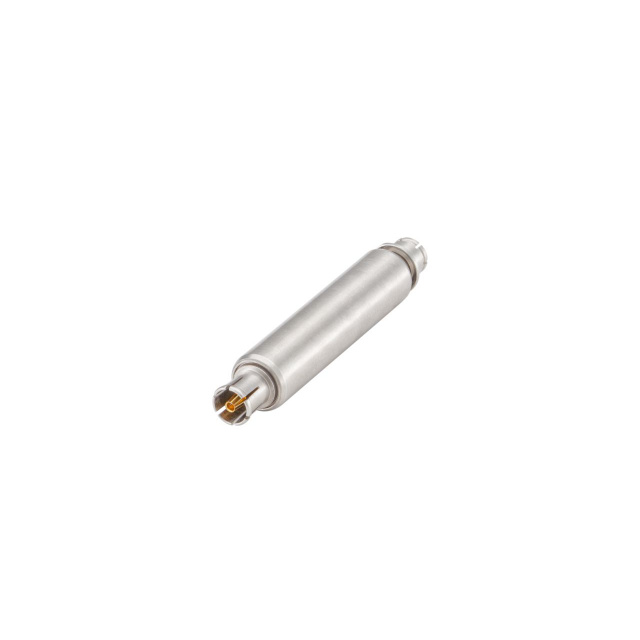

119K112-K00N5 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	119K112-K00N5
Manufacturer	Rosenberger
Other Part Numbers	119K112-K00N5-ND 248549
Description	PSMP ADAPTER
Detailed Description	Adapter Coaxial Connector PSMP Jack, Female Socket To PSMP Jack, Female Socket 50 Ohms

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Rosenberger
Series
Packaging		Bulk
Part Status		Obsolete
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		PSMP Jack, Female Socket
Convert To (Adapter End)		PSMP Jack, Female Socket
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.16dB
Fastening Type		Snap-On, Snap-On
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		PSMP to PSMP
Adapter Type		Jack to Jack
Center Gender		Female to Female
Conversion Type		Same Series
Body Material		Brass
Center Contact Material		Beryllium Copper
Body Finish		White Bronze
Center Contact Plating		Gold
Frequency - Max		10 GHz

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
