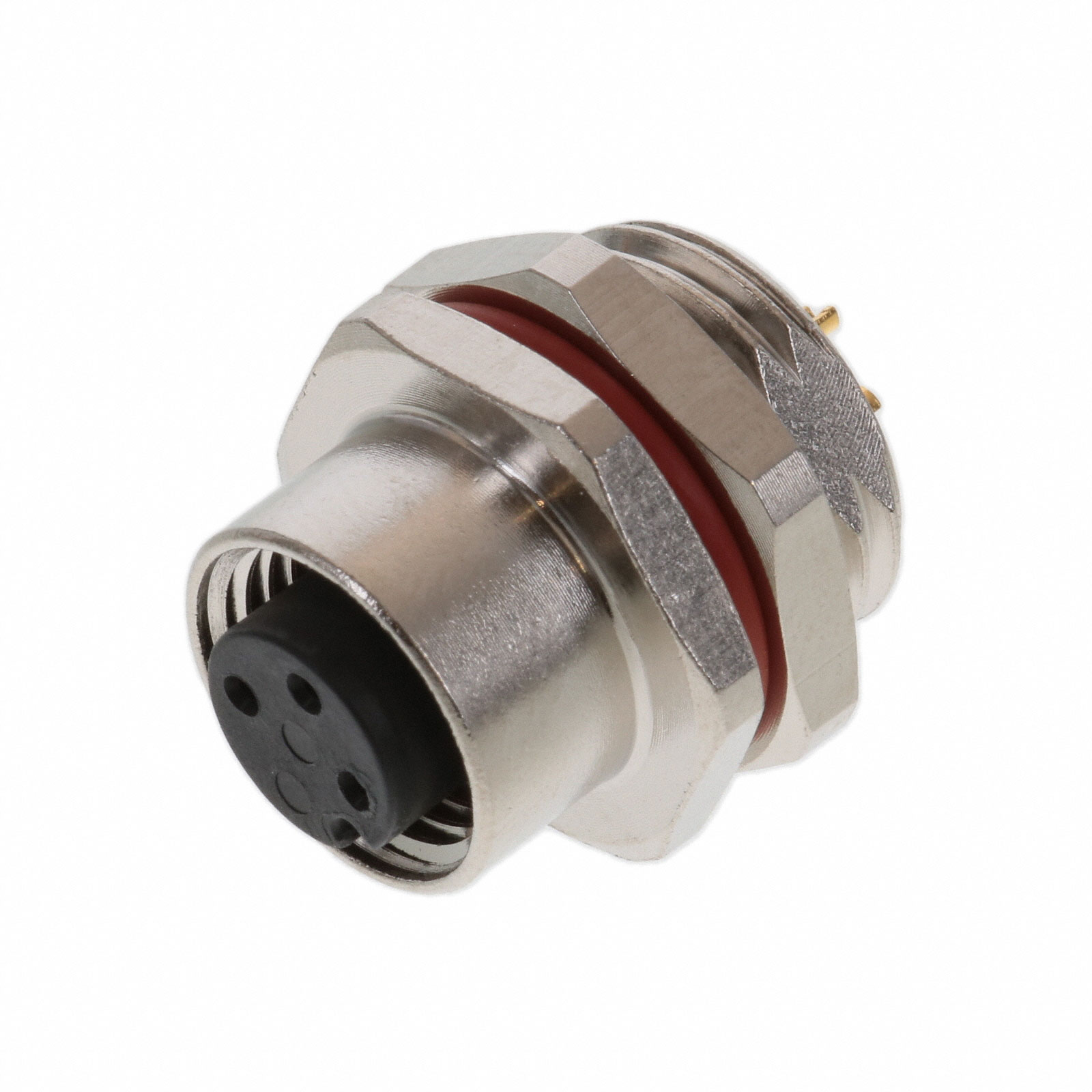

11072F-03-2-1-1 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	11072F-03-2-1-1
Manufacturer	CnC Tech
Other Part Numbers	1175-11072F-03-2-1-1-ND 1175-11072F-03-2-1-1
Description	CONN PLUG FMALE 3POS SOLDER CUP
Detailed Description	3 Position Circular Connector Plug, Female Sockets Solder Cup
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		CnC Tech
Series
Packaging		Tray
Part Status		Active
Connector Type		Plug, Female Sockets
Color		Silver
Voltage Rating		60VAC/DC
Current Rating (Amps)		5A
Mounting Type		Panel Mount
Shielding		Unshielded
Number of Positions		3
Orientation		A
Shell Size - Insert		M12-3
Operating Temperature		-40°C ~ 100°C
Fastening Type		Threaded
Termination		Solder Cup
Ingress Protection		IP68 - Dust Tight, Waterproof
Material Flammability Rating		UL94 V-0
Mounting Feature		Bulkhead - Rear Side Nut
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		3.00µin (0.076µm)
Shell Material		Copper Alloy
Shell Finish		Nickel
Insert Material		Polyamide (PA), Nylon
Primary Material		Metal

RESOURCE TYPE		LINK
Datasheets		11072F-03-2-1-1
Datasheets		CNC Tech RoHS_REACH _CA Prop_Halogen

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
