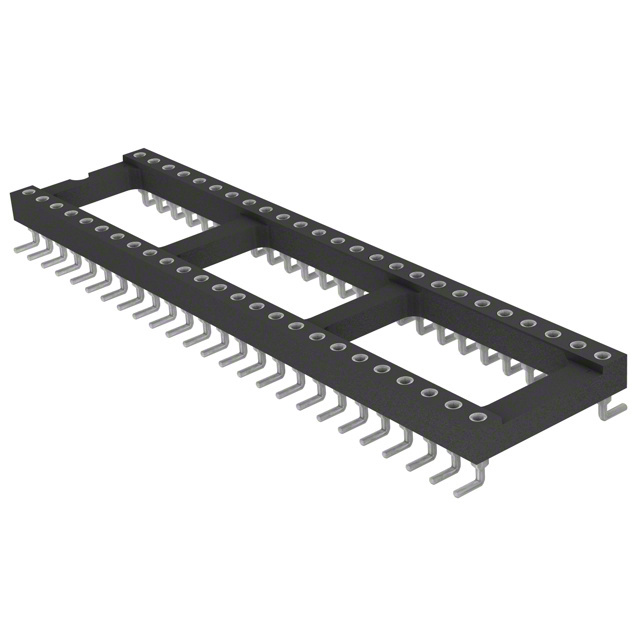

110-93-650-41-105000 _ IC Sockets_Sockets for ICs, Transistors_Connectors, Interconnects

Part Number	110-93-650-41-105000
Manufacturer	Mill-Max
Other Part Numbers	11093-65041105000-ND 11093-65041105000 1109365041105000
Description	CONN IC DIP SOCKET 50POS GOLD
Detailed Description	50 (2 x 25) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Surface Mount
Manufacturer Standard Lead Time	2 weeks

Category		Connectors, Interconnects Sockets for ICs, Transistors IC Sockets
Manufacturer		Mill-Max
Series		110
Packaging		Tube
Part Status		Active
Features		Open Frame
Mounting Type		Surface Mount
Type		DIP, 0.6" (15.24mm) Row Spacing
Operating Temperature		-55°C ~ 125°C
Number of Positions or Pins (Grid)		50 (2 x 25)
Termination		Solder
Housing Material		Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Material - Mating		Beryllium Copper
Pitch - Post		0.100" (2.54mm)
Contact Finish - Post		Tin-Lead
Contact Finish Thickness - Post		200.0µin (5.08µm)
Contact Material - Post		Brass Alloy
Termination Post Length		0.125" (3.18mm)
Current Rating (Amps)		3 A

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
