109296002381906

109296002381906

Part Number	109296002381906
Manufacturer	KYOCERA AVX
Other Part Numbers	1253-1788-ND 1253-1788

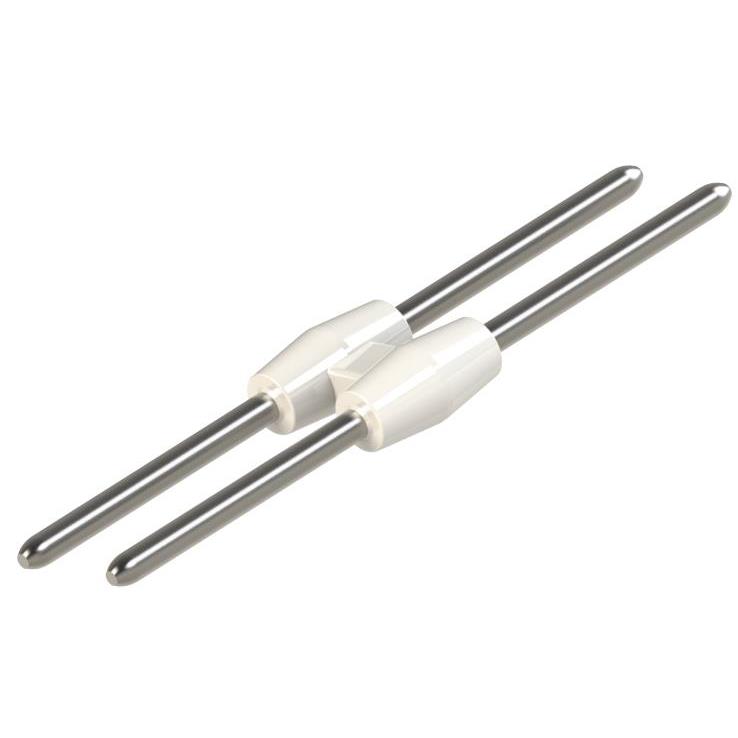

Description	2 POS JUMPER 38.1MM
Detailed Description	4 (2 x 2) Position Shunt Connector Insulated 0.157" (4.00mm) Tin-Lead
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Shunts, Jumpers
Manufacturer		KYOCERA AVX
Series		9296
Packaging		Bulk
Part Status		Active
Gender		Male Pins
Contact Finish		Tin-Lead
Voltage Rating		300V
Current Rating (Amps)		9A
Pitch		0.157" (4.00mm)
Type		Insulated
Number of Positions or Pins (Grid)		4 (2 x 2)
Material Flammability Rating		UL94 V-0
Housing Material		Polyamide (PA66), Nylon 6/6, Glass Filled

Documents & Media

RESOURCE TYPE		LINK
Datasheets		109296002381906

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

In Stock: 1230

Can ship immediately.
