Part Number |
107100000
|
---|---|
Manufacturer | Seeed |
Other Part Numbers |
107100000-ND
COM101B8B
COM101B8B-ND
|

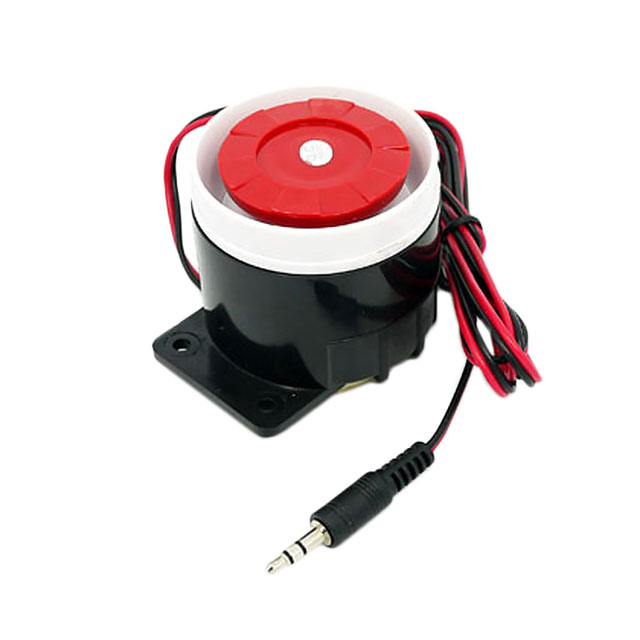

Description | BUZZER PIEZO 12V 55MM BRACKET |
Detailed Description | Buzzers Indicator, Internally Driven Piezo 12 V 160mA 110dB Bracket Mount Wire Leads |
Category | ||
---|---|---|
Manufacturer | Seeed | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Size / Dimension | 2.165" Dia (55.00mm) | |
Mounting Type | Bracket Mount | |
Operating Temperature | -20°C ~ 50°C | |
Sound Pressure Level (SPL) | 110dB | |
Current - Supply | 160mA | |
Input Type | DC | |
Operating Mode | Single Tone | |
Voltage Range | 8 ~ 16V | |
Technology | Piezo | |
Termination | Wire Leads | |
Port Location | Top | |
Driver Circuitry | Indicator, Internally Driven | |
Height - Seated (Max) | 1.890" (48.00mm) | |
Voltage - Rated | 12 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 107100000 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8531.10.0045 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
