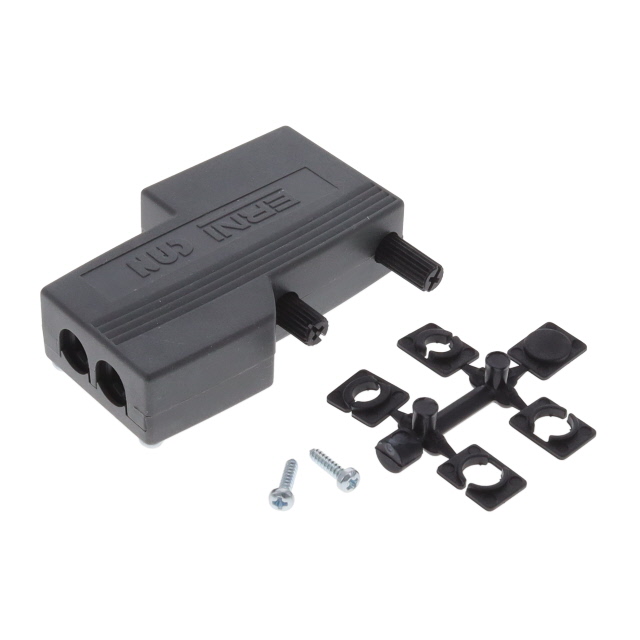

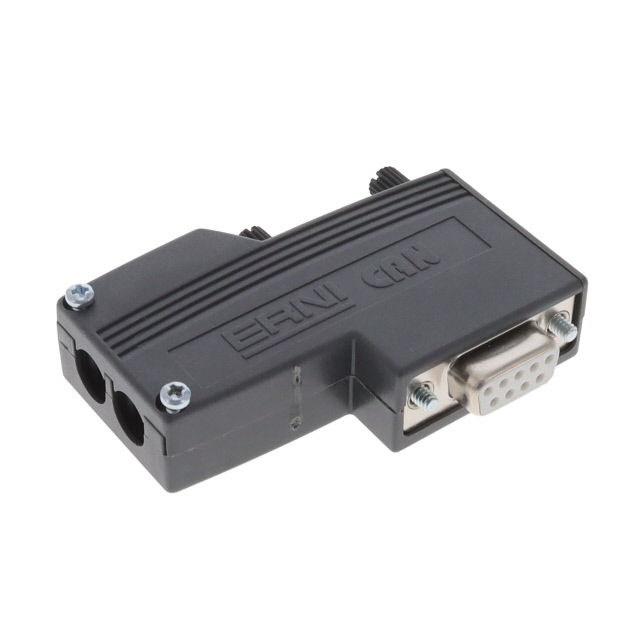

103642-E _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	103642-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-103642-E-ND 2684-103642-ND 2684-103642-E 103642 2684-103642
Description	CONN D-SUB RCPT 9POS SCREW
Detailed Description	9 Position D-Sub Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		TE Connectivity ERNI
Series
Packaging		Box
Part Status		Active
Features		Backshell
Connector Type		Receptacle, Female Sockets
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		9
Number of Rows		2
Operating Temperature		-20°C ~ 70°C
Contact Type		Signal
Flange Feature		Cable Side, Male Jackscrew (4-40)
Termination		Screw
Ingress Protection		IP40
Connector Style		D-Sub
Material Flammability Rating		UL94 V-1
Dielectric Material		Plastic
Shell Size, Connector Layout		1 (DE, E)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

Can ship immediately.
