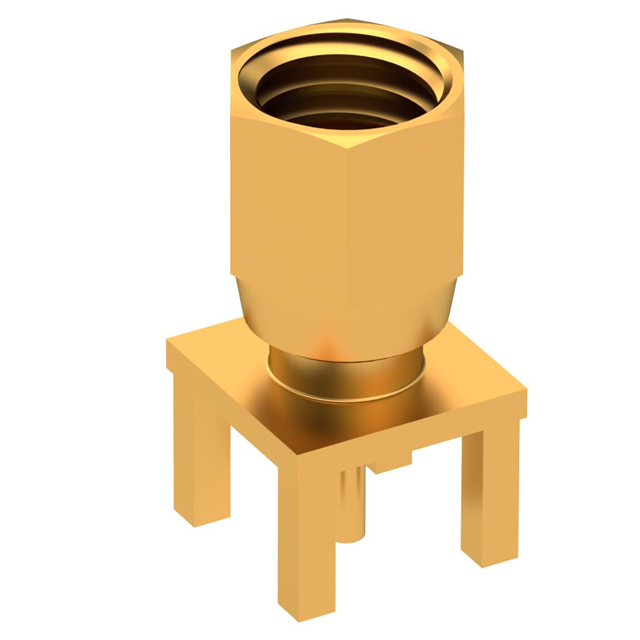

1025-1511-000 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	1025-1511-000
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-1025-1511-000-ND 2201-1025-1511-000
Description	SMC / STRAIGHT PLUG RECEPTACLE F
Detailed Description	SMC Connector Plug, Female Socket 50 Ohms Through Hole Solder
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.25dB
Fastening Type		Threaded
Connector Style		SMC
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		10 GHz
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		1025-1511-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
