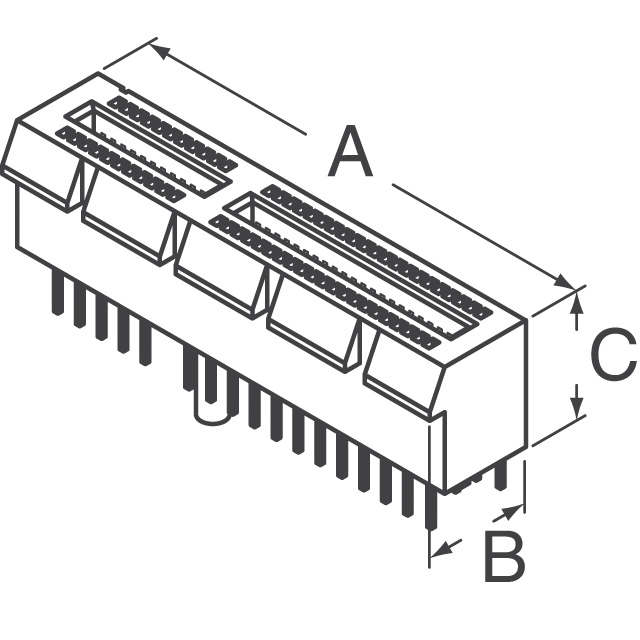

10057596-10110TLF _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	10057596-10110TLF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-2068-ND 609-2068
Description	CONN PCI EXP FMALE 280POS 0.039
Detailed Description	280 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series
Packaging		Tray
Part Status		Active
Features		Board Guide, Locking Ramp
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Through Hole
Number of Positions		280
Pitch		0.039" (1.00mm)
Operating Temperature		-55°C ~ 85°C
Read Out		Dual
Contact Type		Cantilever
Card Type		PCI Express™
Card Thickness		0.062" (1.57mm)
Termination		Solder, Staggered
Contact Finish Thickness		15.0µin (0.38µm)
Material - Insulation		Polyamide (PA), Nylon, Glass Filled
Contact Material		Copper Alloy
Number of Positions/Bay/Row		11; 38; 91
Number of Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
