100304QC

100304QC

Part Number	100304QC
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-100304QC-ND FAIFSC100304QC 2156-100304QC
Description	AND/NAND GATE, 100K SERIE
Detailed Description	AND/NAND Gate Configurable 5 Circuit 10 Input (2, 2, 2, 2, 2) Input 28-PLCC (11.51x11.51)

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters - Multi-Function, Configurable
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active

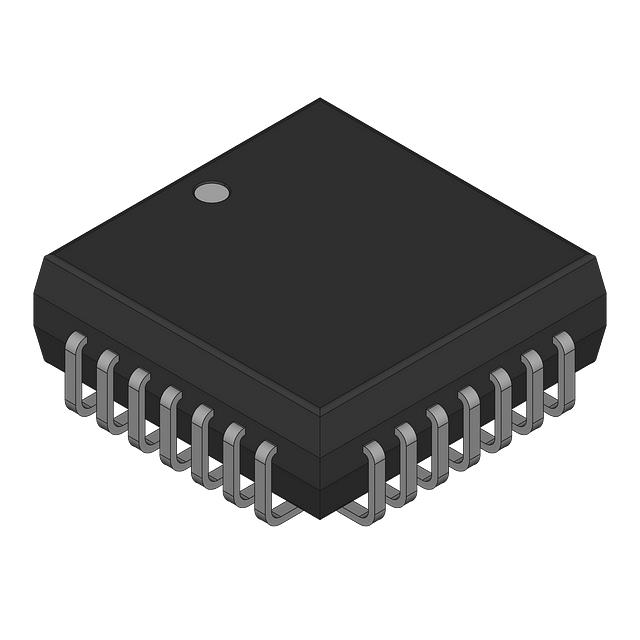

Package / Case		28-LCC (J-Lead)
Output Type		Differential
Mounting Type		Surface Mount
Logic Type		AND/NAND Gate
Operating Temperature		0°C ~ 85°C
Voltage - Supply		-4.2V ~ -5.7V
Number of Inputs		10 Input (2, 2, 2, 2, 2)
Schmitt Trigger Input		No
Supplier Device Package		28-PLCC (11.51x11.51)
Number of Circuits		5

Documents & Media

RESOURCE TYPE		LINK
Datasheets		100304QC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
