100301QC

100301QC

Part Number	100301QC
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-100301QC-ND 2156-100301QC FAIFSC100301QC
Description	OR/NOR GATE, 100K SERIES
Detailed Description	NOR/OR Gate Configurable 3 Circuit 15 Input (5, 5, 5) Input 28-PLCC (11.43x11.43)
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters - Multi-Function, Configurable
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active

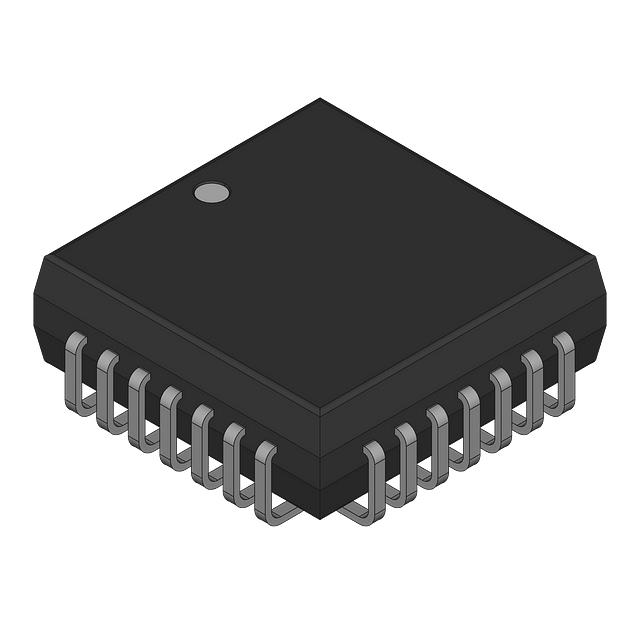

Package / Case		28-LCC (J-Lead)
Output Type		Differential
Mounting Type		Surface Mount
Logic Type		NOR/OR Gate
Operating Temperature		0°C ~ 85°C
Voltage - Supply		-4.2V ~ -5.7V
Number of Inputs		15 Input (5, 5, 5)
Schmitt Trigger Input		No
Supplier Device Package		28-PLCC (11.43x11.43)
Number of Circuits		3

Documents & Media

RESOURCE TYPE		LINK
Datasheets		100301QC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
