1001-002-01100 _ USB, DVI, HDMI Connector Assemblies_USB, DVI, HDMI Connectors_Connectors, Interconnects

Part Number	1001-002-01100
Manufacturer	CnC Tech
Other Part Numbers	1175-1001-ND 1175-1001
Description	CONN RCPT USB1.1 TYPEA 4P SMD RA

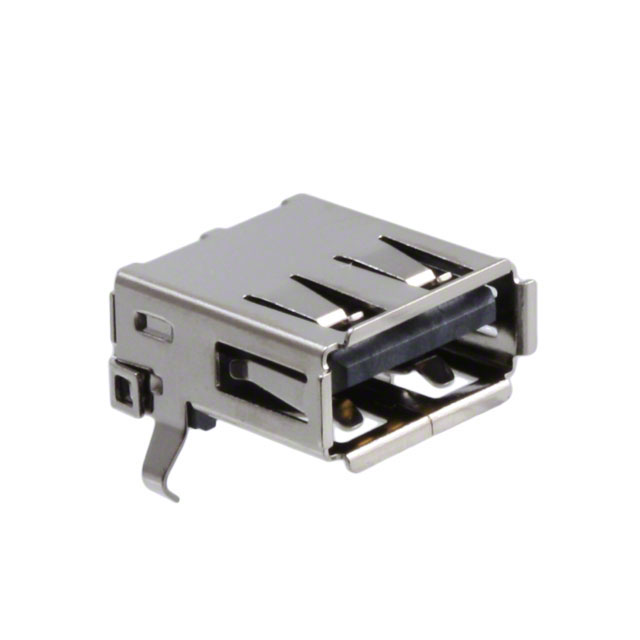

Detailed Description	USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Surface Mount, Right Angle
Manufacturer Standard Lead Time	20 weeks

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		CnC Tech
Series
Packaging		Tray
Part Status		Active
Features		Board Lock
Voltage - Rated		30V
Number of Contacts		4
Connector Type		USB-A (USB TYPE-A)
Gender		Receptacle
Contact Finish		Gold
Current Rating (Amps)		1.5A
Mounting Type		Surface Mount, Right Angle
Operating Temperature		-55°C ~ 50°C
Specifications		USB 1.1
Termination		Solder
Material Flammability Rating		UL94 V-0
Mounting Feature		Horizontal
Mating Cycles		1500
Shell/Shielding Material		Brass
Number of Ports		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
