1000680079 _ Coaxial Cables (RF)_Cables, Wires_

+86-0755-8325-4547

1000680079

1000680079

Part Number	1000680079
Manufacturer	Molex
Other Part Numbers	WM25626-25-ND WM25626-25

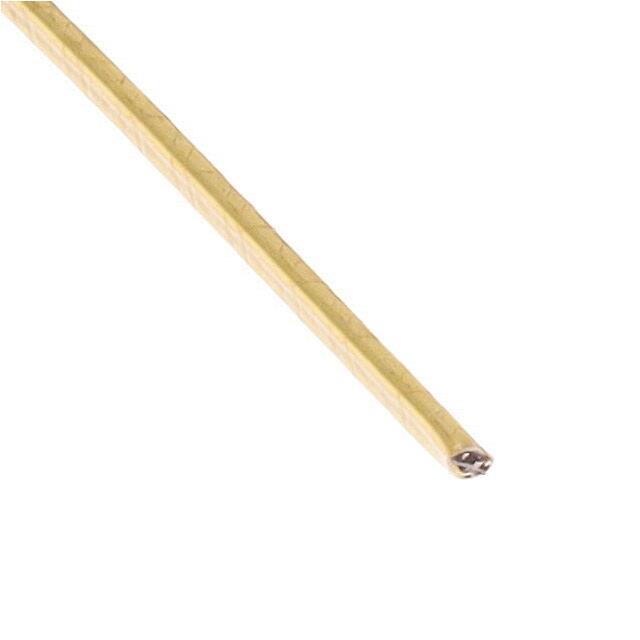

Description	100 OHM 34 AWG TWINAX, 25'
Detailed Description	Twinaxial Cable 34 AWG 25.0' (7.62m) 100 Ohms
Datasheet	Datasheet

Product Attributes

Category		Cables, Wires Coaxial Cables (RF)
Manufacturer		Molex
Series		Temp-Flex TwinMax 100068
Packaging		Spool
Part Status		Active
Features		Drain Wire
Length		25.0' (7.62m)
Wire Gauge		34 AWG
Jacket (Insulation) Material		Polyester
Conductor Strand		Solid (2)
Operating Temperature		-20°C ~ 105°C
Cable Type		Twinaxial
Jacket (Insulation) Diameter		0.044" (1.12mm)
Dielectric Material		Fluoropolymer (FP)
Shield Coverage		100%
Shield Material		Aluminum
Shield Type		Foil
Conductor Material		Copper, Silver Coated
Impedance		100 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1000680079
Datasheets		1000680079 Test Summary
Datasheets		100068xyxy Overview

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 11

Can ship immediately.
