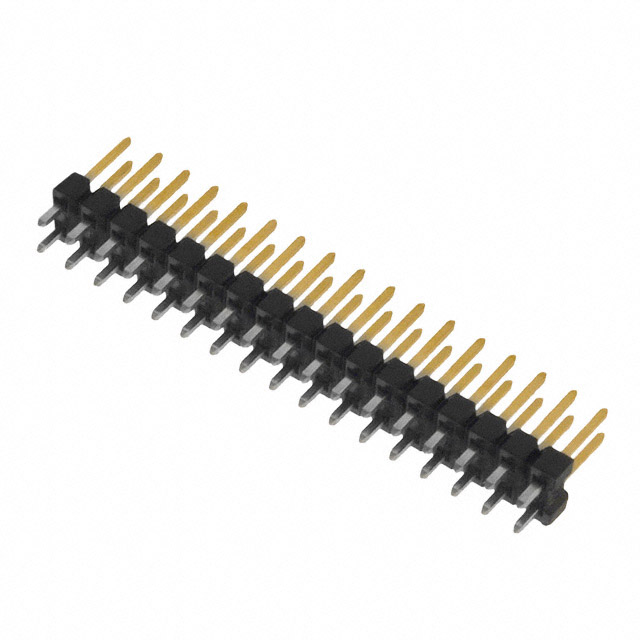

10-89-1341 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	10-89-1341
Manufacturer	Molex
Other Part Numbers	WM6834-ND 10891341 10-89-1341-ND WM6834 0010-89-1341 10-89-1341-E 0010891341 0010891341-E 10891341-E 0010-89-1341-E
Description	CONN HEADER VERT 34POS 2.54MM
Detailed Description	Connector Header Through Hole 34 position 0.100" (2.54mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Molex
Series		C-Grid 8624
Packaging		Bulk
Part Status		Obsolete
Connector Type		Header, Breakaway
Mounting Type		Through Hole
Number of Positions		34
Number of Rows		2
Style		Board to Board or Cable
Applications		Automotive, General Purpose, Lighting, Medical, Telecommunications
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		15.0µin (0.38µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		74.8µin (1.90µm)
Contact Shape		Square
Contact Length - Post		0.107" (2.71mm)
Insulation Height		0.090" (2.29mm)
Shrouding		Unshrouded
Overall Contact Length		0.437" (11.10mm)
Insulation Material		Polyester, Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.240" (6.10mm)

RESOURCE TYPE		LINK
Datasheets		10-89-1341

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
