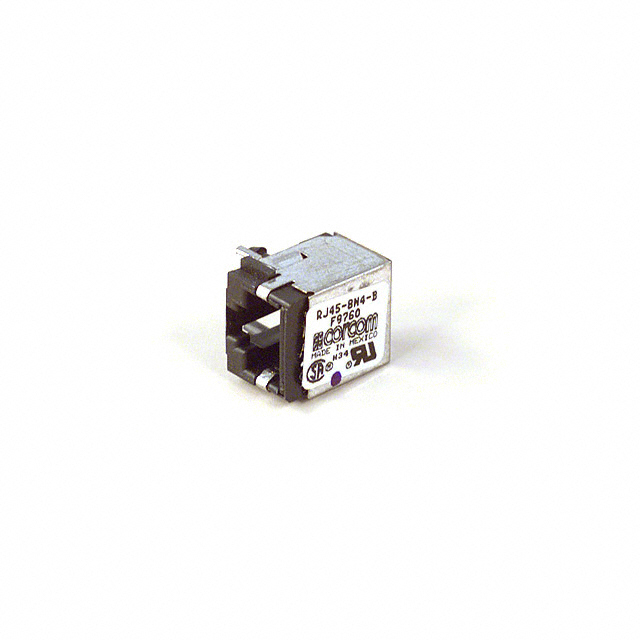

1-6609212-5

Part Number	1-6609212-5
Manufacturer	TE Connectivity Corcom Filters
Other Part Numbers	CCM1504-ND CCM1504-NDR RJ458N4B RJ45-8N4-B 1-1609212-5 CCM1504 -1-6609212-5-LSI
Description	CONN MOD JACK 8P8C R/A SHIELDED
Detailed Description	Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks
Manufacturer		TE Connectivity Corcom Filters
Series		N
Packaging		Bulk
Part Status		Obsolete
Features		Board Lock, Filter, Panel Stops
Connector Type		Jack
Contact Finish		Gold
Mounting Type		Through Hole
Shielding		Shielded
Orientation		90° Angle (Right)
Number of Positions/Contacts		8p8c (RJ45, Ethernet)
Termination		Solder
LED Color		Does Not Contain LED
Tab Direction		Down
Contact Finish Thickness		50.0µin (1.27µm)
Contact Material		Phosphor Bronze
Housing Material		Polyamide (PA), Nylon, Glass Filled
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		1-6609212-5
Other Related Documents		Corcom EMI/RFI Filter Selector Chart
Product Training Modules		Modular Jack Portfolio
Featured Product		Modular Jack Connectors
Featured Product		TE Connectivity - Modular Jack
PCN Obsolescence/ EOL		Multiple Devices 26/Oct/2018
PCN Obsolescence/ EOL		Multiple Devices 26/Oct/2018
3D Drawings		1-6609212-5.pdf
Product Drawings		RJ45-8N4-(B,S) Series

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable

This product is no longer manufactured.
