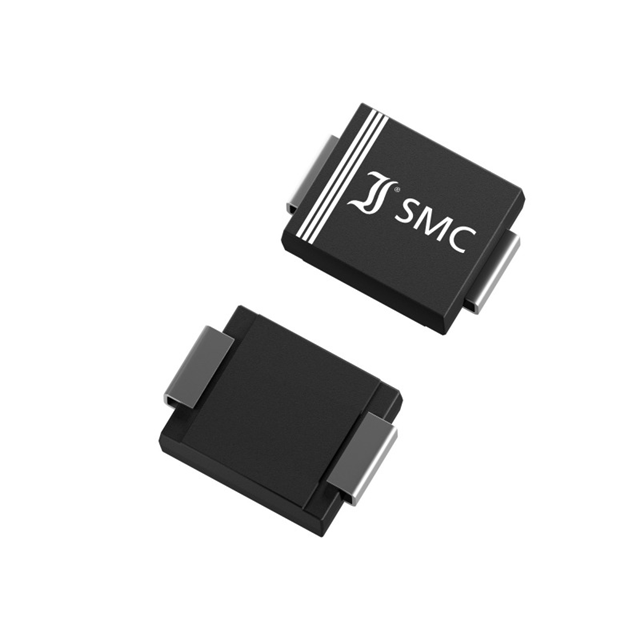

1.5SMCJ22A

Part Number
1.5SMCJ22A
Manufacturer Diotec Semiconductor
Other Part Numbers
2721-1.5SMCJ22A-ND
2721-1.5SMCJ22A
Description TVSDIODE,SMC,22V,1500W,UNI
Detailed Description 35.5V Clamp 42.3A Ipp Tvs Diode Surface Mount SMC/DO-214AB
Datasheet Datasheet

Product Attributes

Category
Manufacturer Diotec Semiconductor
Series
Packaging
Strip
Part Status Active
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Type Zener
Operating Temperature -50°C ~ 150°C (TJ)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 42.3A
Voltage - Reverse Standoff (Typ) 22V
Supplier Device Package SMC/DO-214AB
Unidirectional Channels 1
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets 1.5SMCJ22A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
