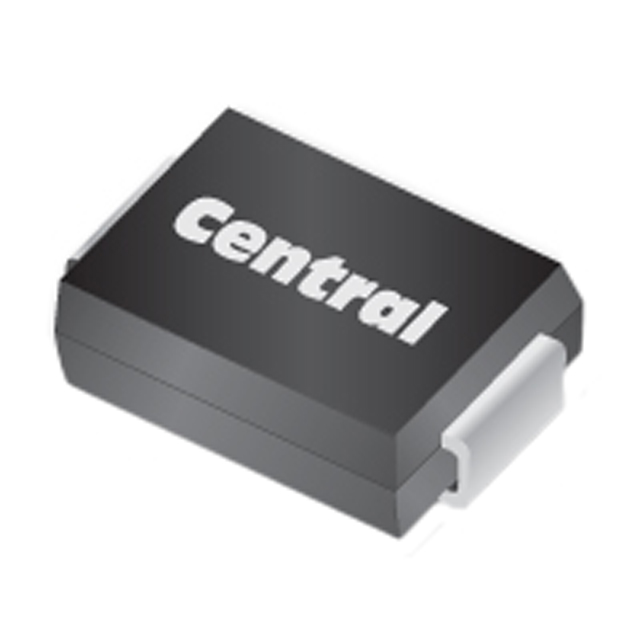

1.5SMC9.1A TR13 PBFREE

1.5SMC9.1A TR13 PBFREE

Part Number	1.5SMC9.1A TR13 PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-1.5SMC9.1ATR13PBFREETR-ND 1.5SMC9.1A TR13-DKR 1514-1.5SMC9.1ATR13PBFREEDKR 1.5SMC9.1A TR13 1.5SMC9.1A TR13-CT-ND 1.5SMC9.1A TR13-TR 1.5SMC9.1ATR13-TR 1.5SMC9.1ATR13-DKR-ND 1514-1.5SMC9.1ATR13PBFREECT 1.5SMC9.1A TR13-CT 1.5SMC9.1ATR13-CT 1.5SMC9.1ATR13-DKR 1.5SMC9.1A TR13-DKR-ND 1514-1.5SMC9.1ATR13PBFREETR 1.5SMC9.1A TR13-TR-ND 1.5SMC9.1ATR13-TR-ND 1.5SMC9.1ATR13-CT-ND
Description	TVS DIODE 7.78VWM 13.4VC SMC
Detailed Description	13.4V Clamp 112A Ipp Tvs Diode Surface Mount SMC
Manufacturer Standard Lead Time	18 weeks

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		DO-214AB, SMC
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-65°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		112A
Voltage - Reverse Standoff (Typ)		7.78V
Supplier Device Package		SMC
Unidirectional Channels		1
Voltage - Breakdown (Min)		8.65V
Voltage - Clamping (Max) @ Ipp		13.4V
Power - Peak Pulse		1500W (1.5kW)
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1.5SMC9.1A TR13 PBFREE
Datasheets		RoHS Cert
Datasheets		SMC 25-Mar-2022

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
