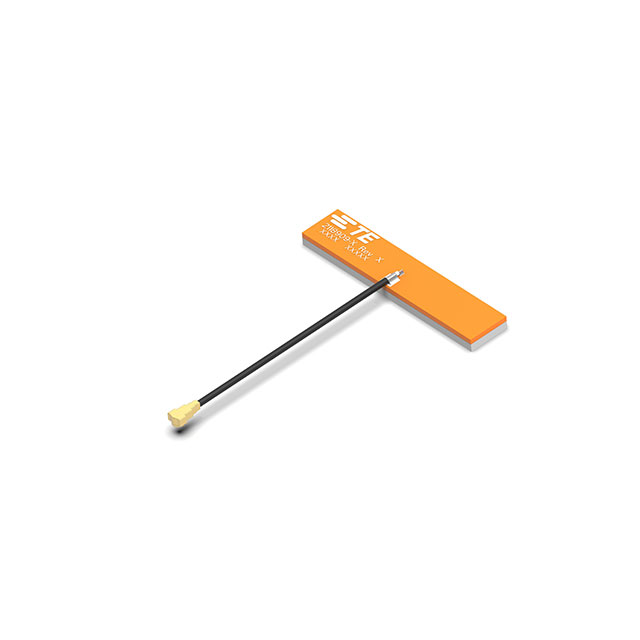

1-2118909-5

1-2118909-5

Part Number	1-2118909-5
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	17-1-2118909-5-ND 17-1-2118909-5 -1076-1-2118909-5
Description	PCB ANT, MHF 4L, 50MM, WI-FI 6E
Detailed Description	2.45GHz, 5.5125GHz, 6.525GHz 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz 3.4dBi MHF4L Adhesive
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity AMP Connectors
Series
Packaging		Bag
Part Status		Active
Features		Cable - 50mm
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz
Applications		802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™
Gain		3.4dBi
Termination		MHF4L
Number of Bands		3
Antenna Type		PCB Trace
Height (Max)		0.039" (1.00mm)
Frequency Group		UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)		2.45GHz, 5.5125GHz, 6.525GHz
RF Family/Standard		802.15.4, Bluetooth, WiFi

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1-2118909-5
Datasheets		1-2118909-5 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 2985

Can ship immediately.
