1-1969594-4

1-1969594-4

Part Number	1-1969594-4
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A121847-ND 2266-1-1969594-4 A121847
Description	CONN RCPT HSG 14POS 2.50MM

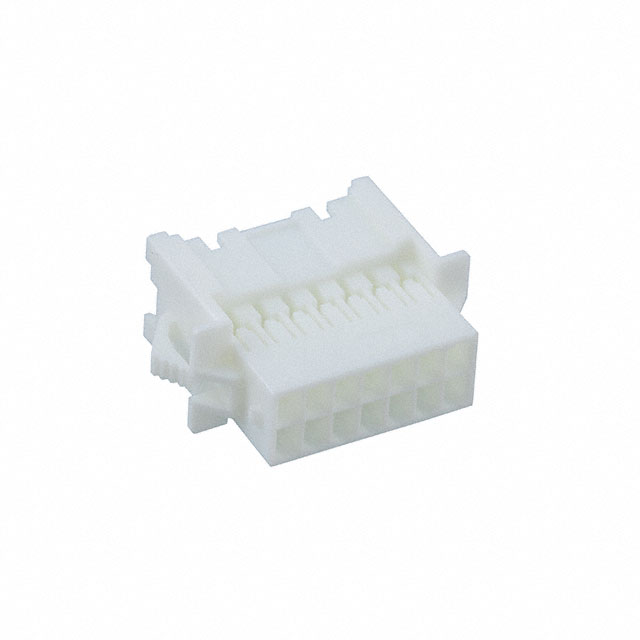

Detailed Description	14 Rectangular Connectors - Housings Receptacle White 0.098" (2.50mm)
Manufacturer Standard Lead Time	21 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Manufacturer		TE Connectivity AMP Connectors
Series		Economy Power 2.5
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle
Contact Termination		Crimp
Color		White
Mounting Type		Panel Mount, Snap-In
Number of Positions		14
Pitch		0.098" (2.50mm)
Operating Temperature		-55°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Latch Holder
Row Spacing		0.098" (2.50mm)
Note		Contacts Not Included
Insulation Material		Polyamide (PA), Nylon
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1-1969594-4
Datasheets		EP 2.5 Product Spec
Datasheets		1969594 Drawing
Datasheets		EP 2.5 Instruction Sheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 12

Can ship immediately.
