Part Number |
1-1747981-7
|
---|---|
Manufacturer | TE Connectivity AMP Connectors |
Other Part Numbers |
1-1747981-7-ND
|

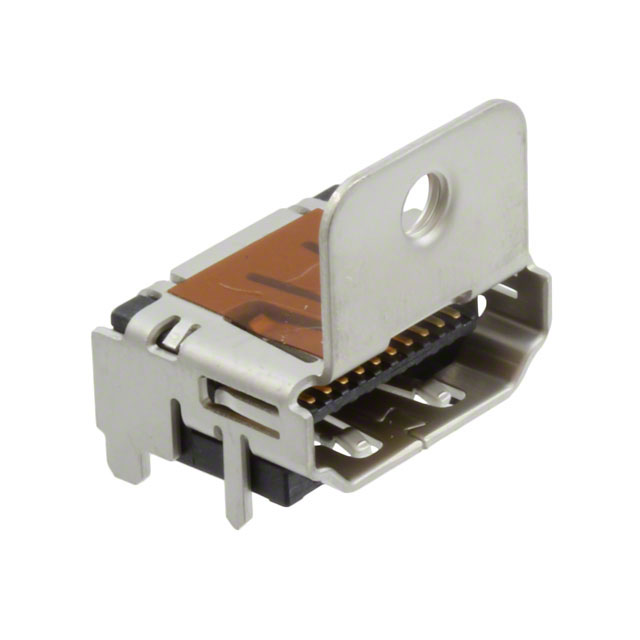

Description | CONN RCPT HDMI 19POS PNL MNT R/A |
Detailed Description | HDMI Receptacle Connector 19 Position Panel Mount; Surface Mount, Right Angle; Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity AMP Connectors | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |
Voltage - Rated | 40VAC | |
Number of Contacts | 19 | |
Connector Type | HDMI | |
Gender | Receptacle | |
Contact Finish | Gold | |
Current Rating (Amps) | 0.5A | |
Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole | |
Operating Temperature | -25°C ~ 70°C | |
Termination | Solder | |
Material Flammability Rating | UL94 V-0 | |
Mounting Feature | Flange, Horizontal | |
Mating Cycles | 10000 | |
Insulation Color | Black | |
Shell/Shielding Material | Copper Alloy | |
Number of Ports | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 1-1747981-7 Statement of Compliance | |
Datasheets | DK OBS NOTICE | |
Datasheets | 1-1747981-7.pdf | |
Datasheets | 1747981 Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
