094-6436-0000

094-6436-0000

Part Number	094-6436-0000
Manufacturer	TE Connectivity Aerospace Defense and Marine
Other Part Numbers	A144692-ND 094-6436-000 M83513/02-DC, MCKS-C2-B-25SS 094-6436-0000-ND 094-6436-000-MIL 1532204-2 A144692 094-6436-0000-MIL M83513/02-DC-MIL 094-6436-000-ND

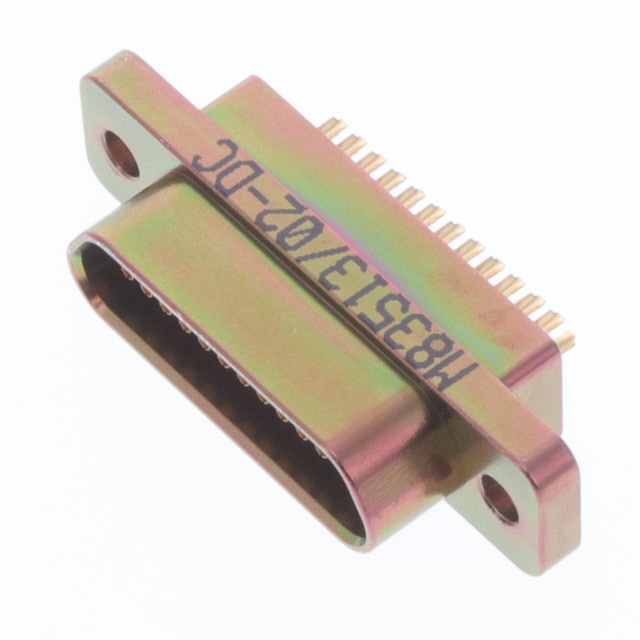

Description	CONN MICRO-D RCPT 25POS SLDR CUP
Detailed Description	25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time	29 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		TE Connectivity Aerospace Defense and Marine
Series		Military, MIL-DTL-83513, MICRODOT (MCKS)
Packaging		Bulk
Part Status		Active
Features		Reverse Layout
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Mounting Type		Free Hanging (In-Line)
Number of Positions		25
Number of Rows		2
Contact Type		Signal
Flange Feature		Housing/Shell (Unthreaded)
Termination		Solder Cup
Connector Style		D-Type, Micro-D
Contact Finish Thickness		50.0µin (1.27µm)
Shell Material, Finish		Metal, Yellow Chromate Plated Cadmium

Documents & Media

RESOURCE TYPE		LINK
Datasheets		094-6436-0000
Datasheets		094-6436-0000.pdf

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

In Stock: 46

Can ship immediately.
