09330009852

Part Number
09330009852
Manufacturer HARTING
Other Part Numbers
09330009852-ND
09 33 000 9852

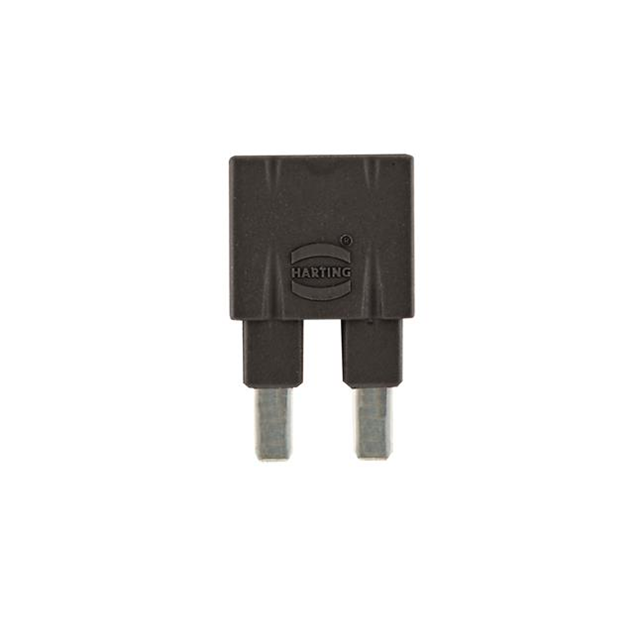

Description HAN ES PRESS PLUG-IN JUMPER 1X2
Detailed Description 2 (1 x 2) Position Shunt Connector Black Insulated 0.264" (6.70mm) Tin
Manufacturer Standard Lead Time 9 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer HARTING
Series
Han® ES Press
Packaging
Bulk
Part Status Active
Gender Male Pins
Contact Finish Tin
Color Black
Voltage Rating 500V
Current Rating (Amps) 16A
Pitch 0.264" (6.70mm)
Type Insulated
Height 0.445" (11.30mm)
Number of Positions or Pins (Grid) 2 (1 x 2)
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon

Documents & Media

RESOURCE TYPE LINK
Datasheets 09330009852
Datasheets 09330009852
Datasheets 09330009852 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 400

Can ship immediately.
