09330009820 _ Shunts, Jumpers_Connectors, Interconnects_

+86-0755-8325-4547

09330009820

09330009820

Part Number	09330009820
Manufacturer	HARTING
Other Part Numbers	1195-5630-ND 1195-5630 09 33 000 9820

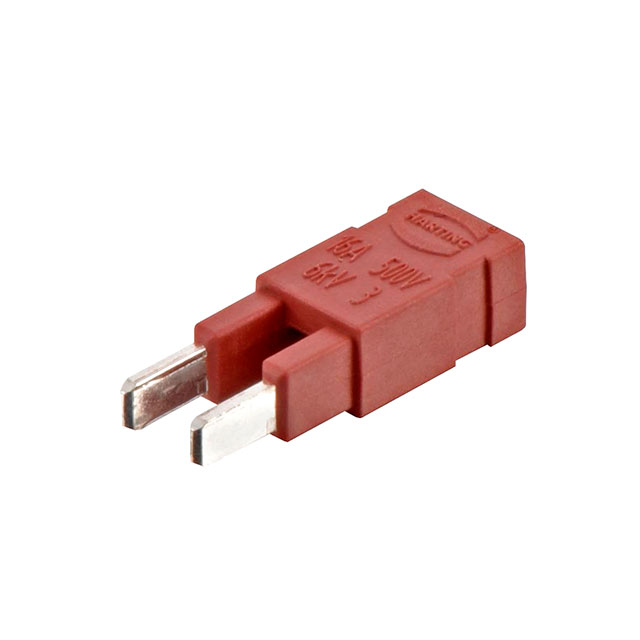

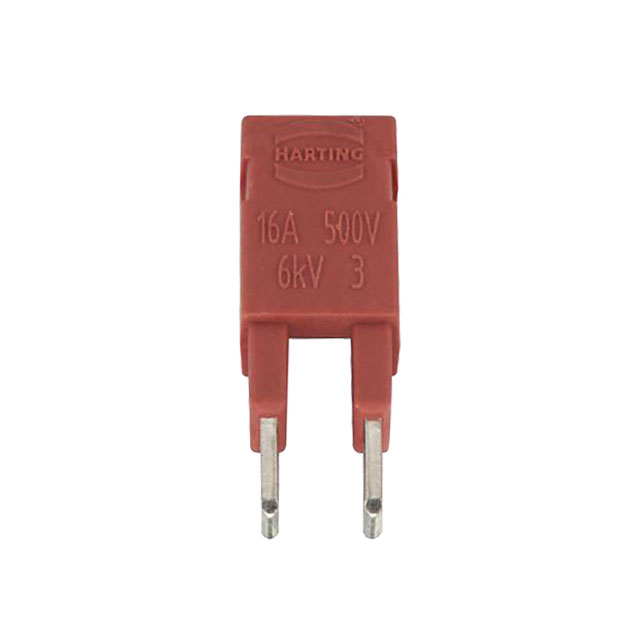

Description	JUMPER ACROSS 2X1 RED 16A
Detailed Description	2 (1 x 2) Position Shunt Connector Red Insulated 0.181" (4.60mm) Tin
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Shunts, Jumpers
Manufacturer		HARTING
Series		Han® ES Press
Packaging		Bulk
Part Status		Active
Gender		Male Pins
Contact Finish		Tin
Color		Red
Voltage Rating		500V
Current Rating (Amps)		16A
Pitch		0.181" (4.60mm)
Type		Insulated
Height		0.445" (11.30mm)
Number of Positions or Pins (Grid)		2 (1 x 2)
Contact Finish Thickness		118.1µin (3.00µm)
Material Flammability Rating		UL94 V-0
Housing Material		Polyamide (PA), Nylon

Documents & Media

RESOURCE TYPE		LINK
Datasheets		09330009820
Datasheets		09330009820 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
