09225SA-24L-EA-D0

Part Number
09225SA-24L-EA-D0
Manufacturer PMDM
Other Part Numbers
12-09225SA-24L-EA-D0-ND
12-09225SA-24L-EA-D0
09225SA24LEAD0

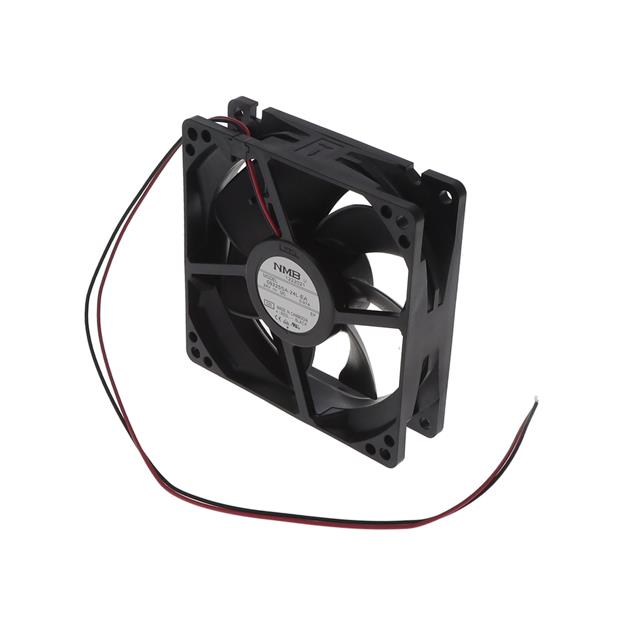

Description FAN AXIAL 92X25MM 24VDC WIRE
Detailed Description Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 39.9 CFM (1.12m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 22 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer PMDM
Series
09225SA
Packaging
Bulk
Part Status Active
Features Auto Restart
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Bearing Type Ball
Current Rating (Amps) 0.050A
RPM 2400 RPM
Air Flow 39.9 CFM (1.12m³/min)
Width 25.00mm
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Voltage Range 12 ~ 27.6VDC
Termination 2 Wire Leads
Lifetime @ Temp. 40000 Hrs @ 60°C
Fan Type Tubeaxial
Noise 25.0dB
Static Pressure 0.120 in H2O (29.9 Pa)
Material - Frame Plastic
Material - Blade Plastic
Power (Watts) 1.2 W

Documents & Media

RESOURCE TYPE LINK
Datasheets 09225SA-24L-EA-D0

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant
