09195207824 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	09195207824
Manufacturer	HARTING
Other Part Numbers	1195-09195207824-ND 8536694040 1195-09195207824
Description	SEK/IDC THR/SMC LOW PROFILE STRA

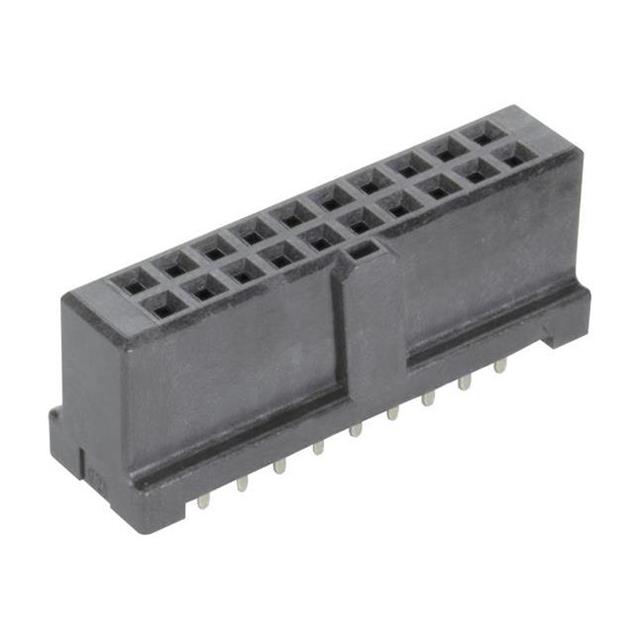

Detailed Description	20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		HARTING
Series		SEK
Packaging		Bulk
Part Status		Active
Features		Polarizing Key
Connector Type		Receptacle
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		20
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.114" (2.90mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.100" (2.54mm)
Number of Rows		2
