09156000912

Part Number
09156000912
Manufacturer HARTING
Other Part Numbers
1195-8340-ND
1195-8340

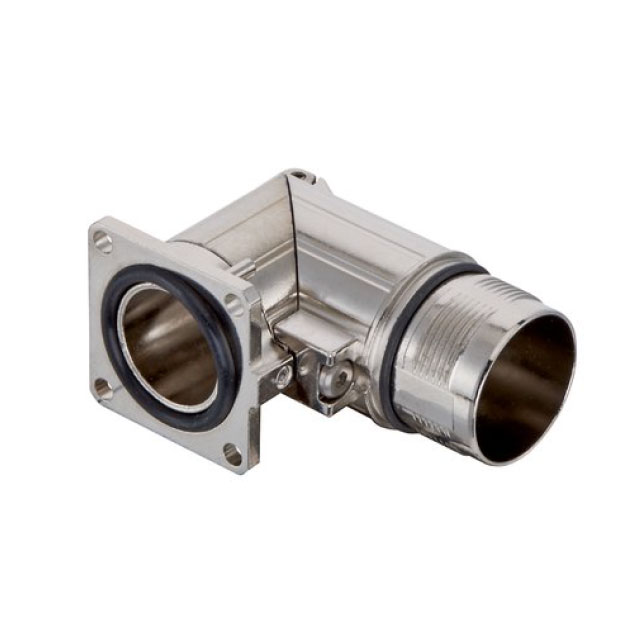

Description CONN INSERT SHELL PNL MNT RA
Detailed Description Position Circular Connector Insert Shell Panel Mount, Right Angle Backshell, Rotatable
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer HARTING
Series
Han® M23 Power
Packaging
Bulk
Part Status Active
Features Backshell, Rotatable
Connector Type Insert Shell
Mounting Type Panel Mount, Right Angle
Shielding Unshielded
Shell Size - Insert M23
Operating Temperature -40°C ~ 125°C
Fastening Type Threaded
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Mounting Feature Flange
Note Contacts Not Included; Insert Not Included
Housing Color Silver
Shell Material Copper Zinc Alloy
Shell Finish Nickel

Documents & Media

RESOURCE TYPE LINK
Datasheets 09156000912
Datasheets 09156000912
Datasheets Design chg 03/MAY/2023
Datasheets 09156000912 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8538.90.8180
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3

Can ship immediately.
