Part Number
09150073101
Manufacturer HARTING
Other Part Numbers
1195-1604-ND
1195-1604
09 15 007 3101
9150073101

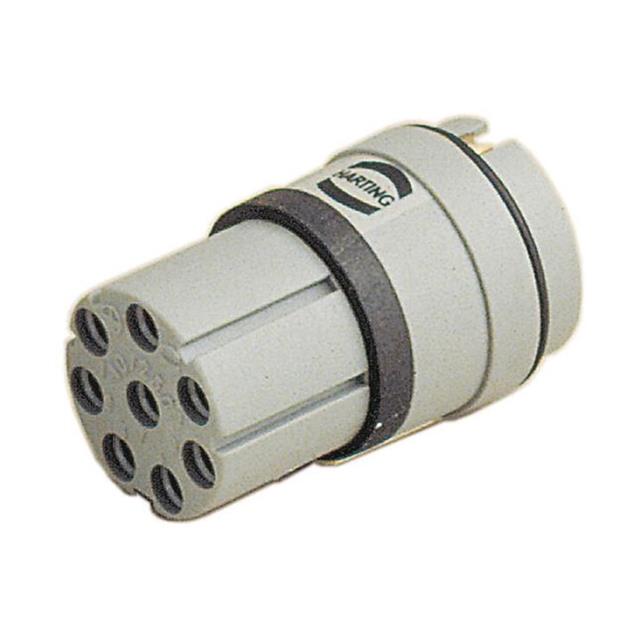

Description CONN INSERT FMALE 8POS
Detailed Description 8 (7 + PE) Position Circular Connector Insert
Manufacturer Standard Lead Time 13 weeks

Product Attributes

Category
Manufacturer HARTING
Series
R 15
Packaging
Bulk
Part Status Active
Connector Type Insert
Shielding Unshielded
Number of Positions 8 (7 + PE)
Type For Female Sockets
Orientation Keyed
Operating Temperature -40°C ~ 125°C
Contact Type Crimp
Ingress Protection IP65 - Dust Tight, Water Resistant
Material Flammability Rating UL94 V-0
Note Contacts Not Included; Insert Only, Requires Shell
Contact Shape Circular
Insert Material Polyamide (PA), Nylon

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8538.90.8180
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
