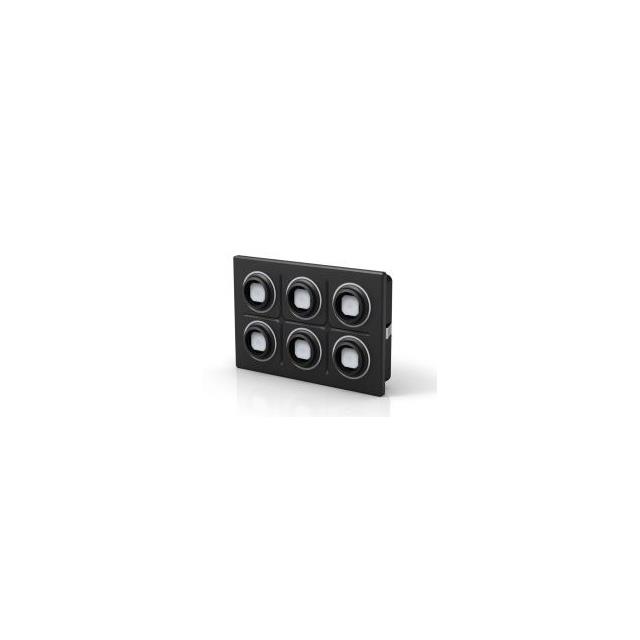

09-0A12.1111

09-0A12.1111

Part Number	09-0A12.1111
Manufacturer	EAO
Other Part Numbers	1948-09-0A12.1111-ND 1948-09-0A12.1111
Description	SWITCH KEYPAD 6KEY 0.03A 32V
Detailed Description	Keypad Switch 6 Keys Snap Dome Contacts Matrix Output Illuminated - White 0.03A @ 32VDC
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Keypad Switches
Manufacturer		EAO
Series		09
Packaging		Box
Part Status		Active
Output Type		Matrix
Number of Keys		6
Mounting Type		Panel Mount, Front
Switch Type		Snap Dome
Operating Temperature		-40°C ~ 85°C
Termination Style		Cable with Connector
Illumination		Illuminated - White
Contact Rating @ Voltage		0.03A @ 32VDC
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Rectangular - 107.10mm x 68.80mm
Legend Type		Fixed
Matrix (Columns x Rows)		3 x 2
Legend Color		White
Key Color		Black

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EAO RoHS Cert
Datasheets		EAO REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6

Can ship immediately.
