0805CS-122XGRC

Part Number
0805CS-122XGRC
Manufacturer COILCRAFT
Other Part Numbers
2457-0805CS-122XGRC-ND
2457-0805CS-122XGRC
Description FIXED IND 1.2UH 156MA 3.5OHM SM

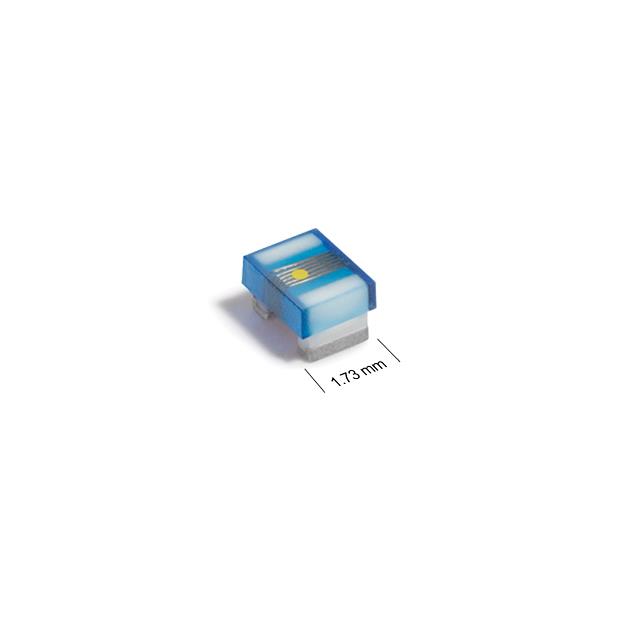

Detailed Description 1.2 µH Unshielded Wirewound Inductor 156 mA 3.5Ohm Max 0805 (2012 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0805CS
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±2%
Package / Case 0805 (2012 Metric)
Size / Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 3.5Ohm Max
Q @ Freq 22 @ 50MHz
Frequency - Self Resonant 250MHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 25 MHz
Supplier Device Package 0805
Height - Seated (Max) 0.060" (1.52mm)
Inductance 1.2 µH
Current Rating (Amps) 156 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 0805CS-122XGRC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
