080-0014

080-0014

Part Number	080-0014
Manufacturer	TE Connectivity Laird
Other Part Numbers	080-0014-ND

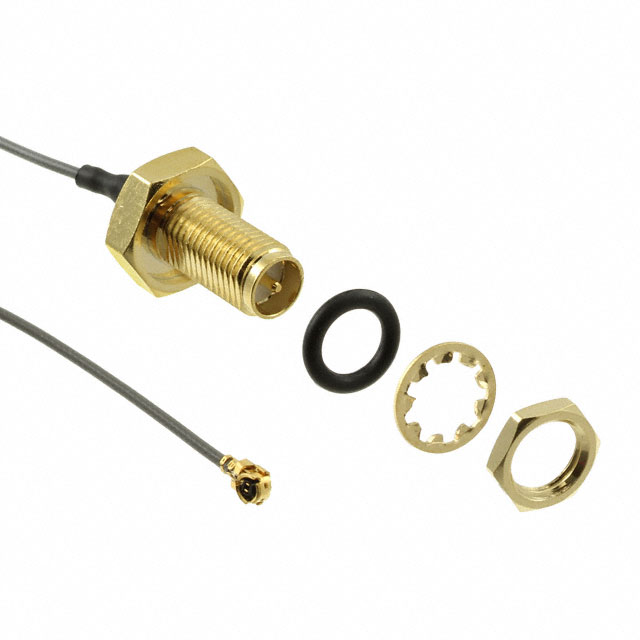

Description	CBL ASSY U.FL-RPSMA JK-PL 8.268"
Detailed Description	Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 1.13mm OD Coaxial Cable 8.268" (210.00mm)
Manufacturer Standard Lead Time	4 weeks

Product Attributes

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		TE Connectivity Laird
Series
Packaging		Bulk
Part Status		Active
Color		Gray
Length		8.268" (210.00mm)
Style		U.FL (UMCC) to RP-SMA
Operating Temperature		-40°C ~ 85°C
Cable Type		1.13mm OD Coaxial Cable
1st Connector		RP-BNC Jack
2nd Connector		U.FL (UMCC) Plug, Right Angle
Frequency - Max		6 GHz
1st Connector Mounting Type		Panel Mount
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Male
2nd Contact Gender		Female
Overall Impedance		50 Ohms
1st Connector Mounting Feature		Bulkhead - Front Side Nut

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
