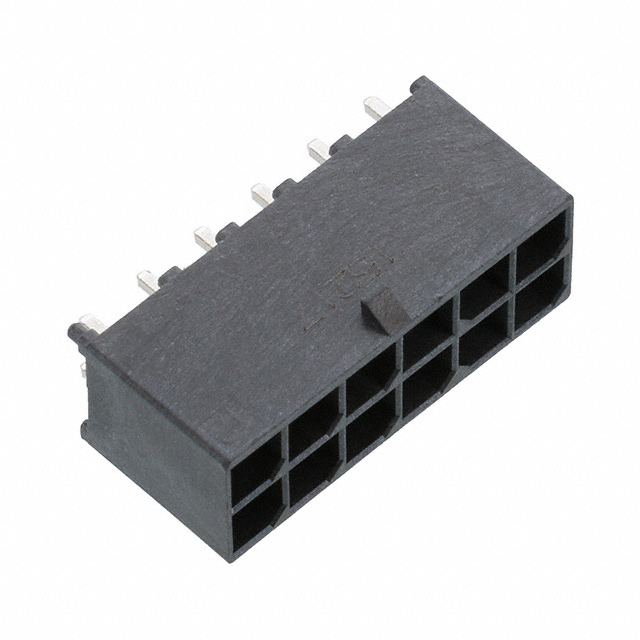

0768290112 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	0768290112
Manufacturer	Molex
Other Part Numbers	WM16841-ND WM16841 076829-0112 76829-0112 768290112
Description	CONN HEADER VERT 12POS 5.7MM
Detailed Description	Connector Header Through Hole 12 position 0.224" (5.70mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Molex
Series		Mega-Fit
Packaging		Tray
Part Status		Active
Features		Board Guide, Glow Wire Compliant
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		12
Number of Rows		2
Style		Board to Cable/Wire
Applications		Automotive, General Purpose, Industrial, Telecommunications
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper
Insulation Color		Black
Pitch - Mating		0.224" (5.70mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		60.0µin (1.52µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		60.0µin (1.52µm)
Contact Shape		Square
Contact Length - Post		0.147" (3.73mm)
Insulation Height		0.583" (14.80mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.224" (5.70mm)

RESOURCE TYPE		LINK
Datasheets		0768290112
Datasheets		Mega-Fit Series Brochure
Datasheets		Mult Devs Cancel Supplier Source 28/Jul/2022
Datasheets		0768290112 Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
