0743204000

0743204000

Part Number	0743204000
Manufacturer	Molex
Other Part Numbers	WM5718-ND 0743204000-E 743204000-E WM5718 074320-4000 74320-4000-E 74320-4000 074320-4000-E 74320-4000-ND 743204000

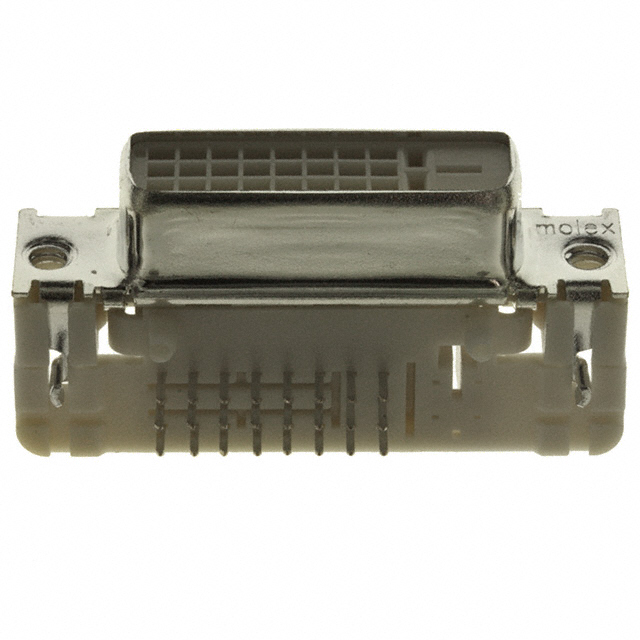

Description	CONN RCPT DVI-D DL 24POS PCB R/A
Detailed Description	DVI-D, Dual Link Receptacle Connector 24 Position Panel Mount, Through Hole, Right Angle
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		Molex
Series		MicroCross 74320
Packaging		Tray
Part Status		Active
Features		Board Guide
Voltage - Rated		40VAC
Number of Contacts		24
Connector Type		DVI-D, Dual Link
Gender		Receptacle
Current Rating (Amps)		3A per Contact
Mounting Type		Panel Mount, Through Hole, Right Angle
Shielding		Shielded
Operating Temperature		-20°C ~ 85°C
Termination		Solder
Mounting Feature		Flange, Horizontal
Mating Cycles		100
Number of Ports		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		0743204000
Datasheets		Multiple Devices Plating 16/Aug/20106
Datasheets		74320 Series Material 23/Mar/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6189

Can ship immediately.
