0740298000

0740298000

Part Number	0740298000
Manufacturer	Molex
Other Part Numbers	WM6561-ND 740298000-E 0740298000-E 74029-8000-E SD-74029-002 740298000 074029-8000-E 074029-8000 WM6561 74029-8000 SD-74029-009 74029-8000-ND

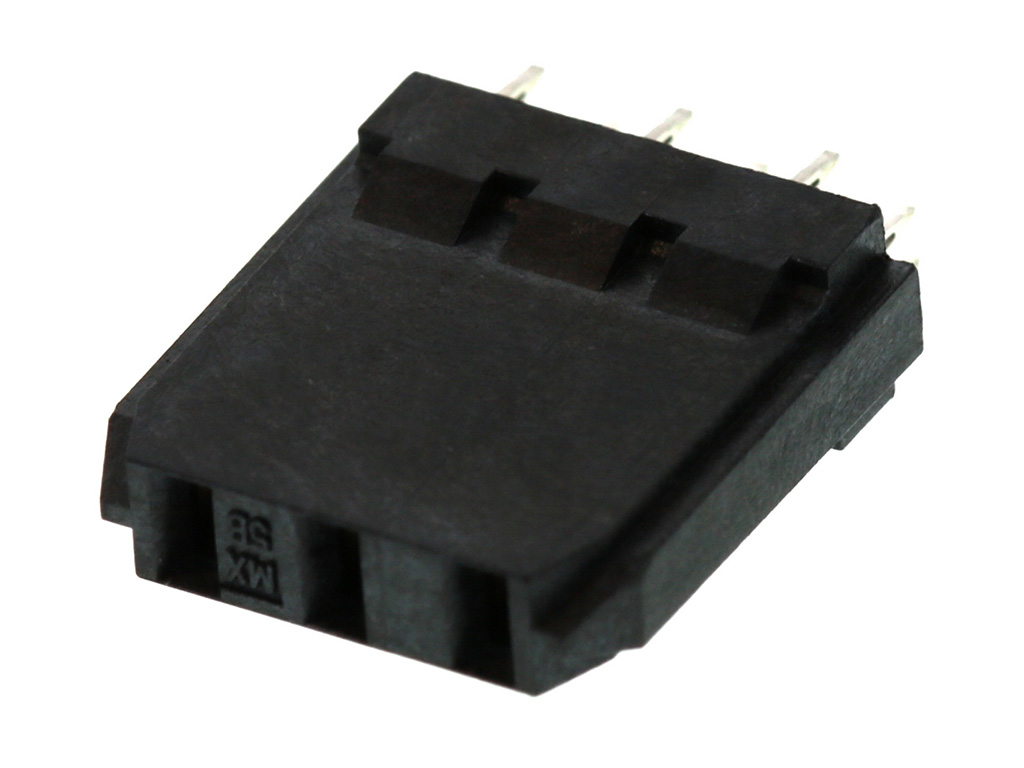

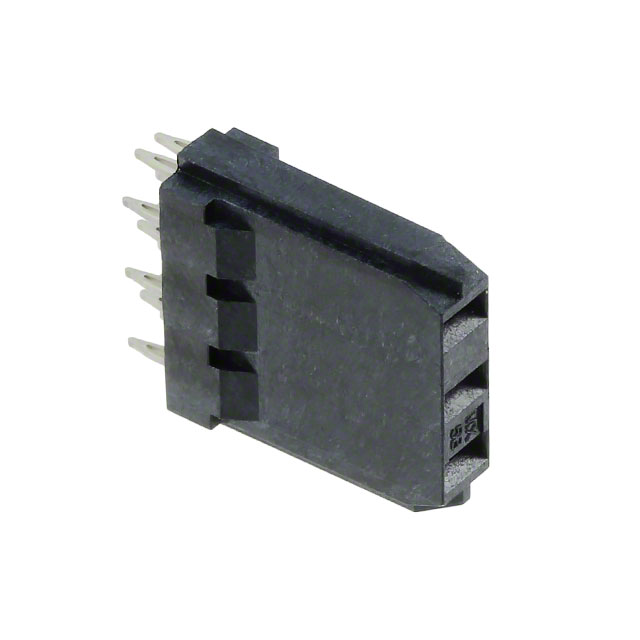

Description	CONN RCPT VHDM 3POS PCB
Detailed Description	3 Connector Receptacle, Female Blade Sockets Through Hole Black VHDM
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Backplane Connectors Specialized
Manufacturer		Molex
Series		VHDM-HSD 74029
Packaging		Tube
Part Status		Active
Connector Type		Receptacle, Female Blade Sockets
Contact Finish		Gold
Color		Black
Voltage Rating		120V
Mounting Type		Through Hole
Number of Positions		3
Operating Temperature		-55°C ~ 105°C
Number of Positions Loaded		All
Termination		Press-Fit
Connector Usage		Backplane
Connector Style		VHDM
Contact Finish Thickness		30.0µin (0.76µm)
Material Flammability Rating		UL94 V-0
Contact Layout, Typical		3 Power

Documents & Media

RESOURCE TYPE		LINK
Datasheets		0740298000
Datasheets		Backplane Roadmap
Datasheets		Multiple Devices Loction 22/Jun/2020
Datasheets		Mult Devs Packaging 20/Jun/2022
Datasheets		0740298000

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

In Stock: 1016

Can ship immediately.
