Part Number |
0717193000
|
---|---|
Manufacturer | Molex |
Other Part Numbers |
WM7999-ND
WM7999
71719-3000
717193000
071719-3000
|

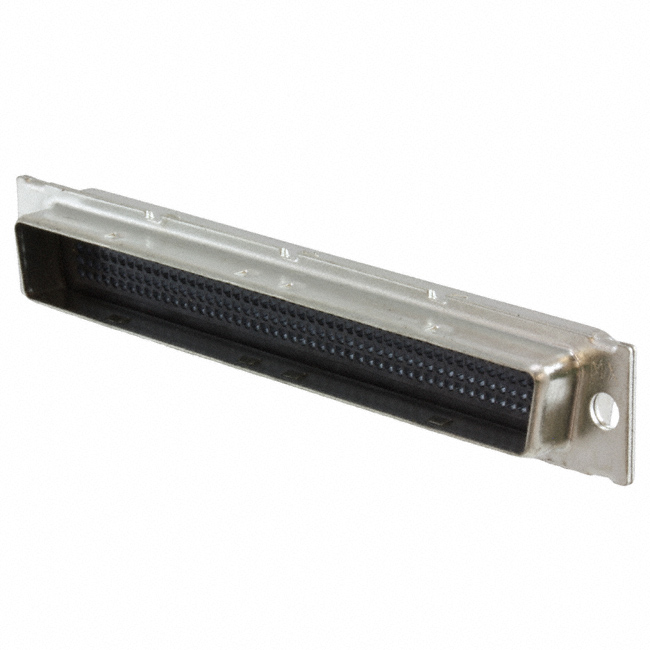

Description | CONN HOUSING PLUG 200POS |
Detailed Description | Plug for Male Matrix Strip Housing D-Type Connector 200 Position |
Category | ||
---|---|---|
Manufacturer | Molex | |
Series |
Low Force Helix (LFH) 71719
|
|
Packaging |
Tray
|
|
Part Status | Obsolete | |
Features | Grounding Indents, Shielded | |
Connector Type | Plug for Male Matrix Strip | |
Color | Black | |
Mounting Type | Free Hanging (In-Line) | |
Number of Positions | 200 | |
Operating Temperature | -20°C ~ 80°C | |
Contact Type | Signal | |
Flange Feature | Housing/Shell (Unthreaded) | |
Connector Style | D-Type | |
Dielectric Material | Liquid Crystal Polymer (LCP), Glass Filled | |
Shell Material, Finish | Steel, Tin Plated | |
Note | Contacts Not Included | |
Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
Shell Finish Thickness | 150µin (3.81µm) | |
Number of Rows | 4 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8538.90.8180 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
