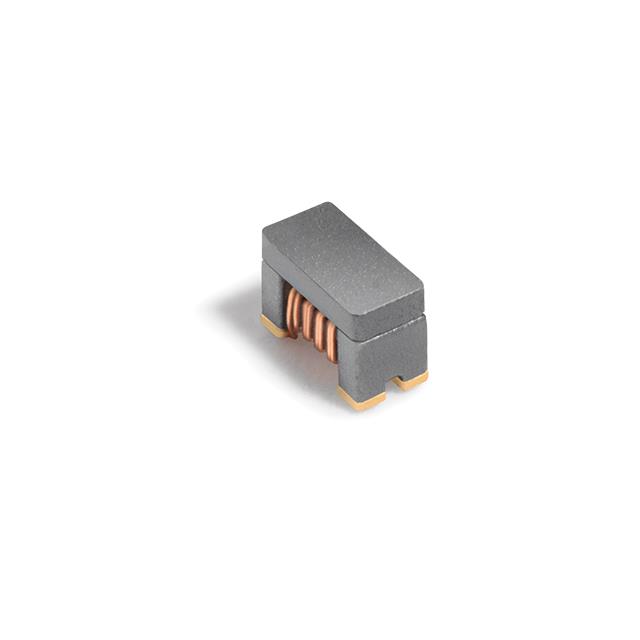

0603USB-142MLC

0603USB-142MLC

Part Number	0603USB-142MLC
Manufacturer	COILCRAFT
Other Part Numbers	2457-0603USB-142MLC-ND 2457-0603USB-142MLC
Description	0603USB-142MLC
Detailed Description	98 nH @ 100 MHz 2 Line Common Mode Choke Surface Mount 420 Ohms @ 1.9 GHz 500mA DCR 174mOhm
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		COILCRAFT
Series		0603USB
Packaging		Strip
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Signal Line
Size / Dimension		0.063" L x 0.033" W (1.60mm x 0.85mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-40°C ~ 105°C
Height (Max)		0.046" (1.17mm)
Voltage Rating - AC		250V
Current Rating (Max)		500mA
DC Resistance (DCR) (Max)		174mOhm
Inductance @ Frequency		98 nH @ 100 MHz
Impedance @ Frequency		420 Ohms @ 1.9 GHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		0603USB-142MLC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
