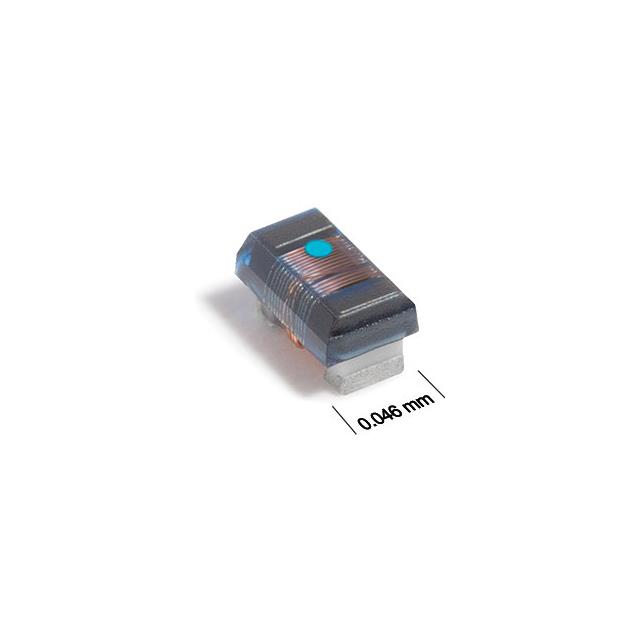

0603LS-392XJRC _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	0603LS-392XJRC
Manufacturer	COILCRAFT
Other Part Numbers	2457-0603LS-392XJRC-ND 2457-0603LS-392XJRC
Description	RF INDUCTOR, FERRITE CORE, 5% TO
Detailed Description	3.9 µH Unshielded Inductor 280 mA 1.6Ohm Max 0603 (1608 Metric)
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		COILCRAFT
Series		0603LS
Packaging		Strip
Part Status		Active
Tolerance		±5%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.071" L x 0.050" W (1.80mm x 1.27mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Operating Temperature		-40°C ~ 100°C
DC Resistance (DCR)		1.6Ohm Max
Q @ Freq		15 @ 7.9MHz
Frequency - Self Resonant		40MHz
Ratings		AEC-Q200
Material - Core		Ceramic, Ferrite
Inductance Frequency - Test		7.9 MHz
Supplier Device Package		0603
Height - Seated (Max)		0.044" (1.11mm)
Inductance		3.9 µH
Current Rating (Amps)		280 mA

RESOURCE TYPE		LINK
Datasheets		0603LS-392XJRC

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
