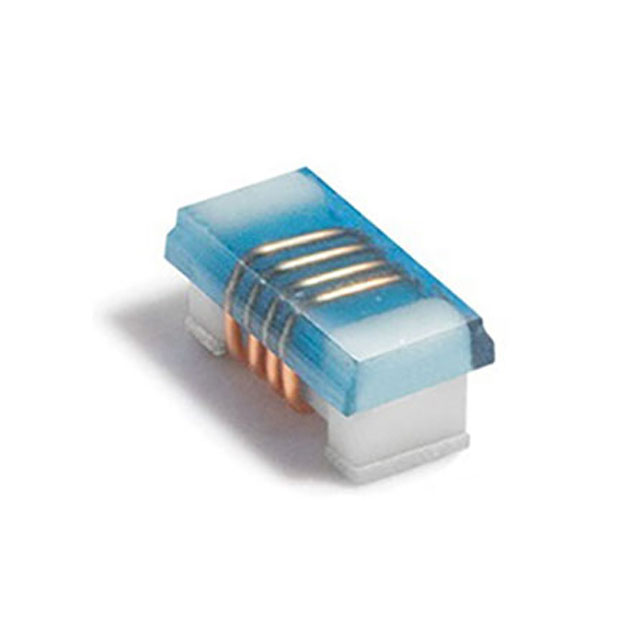

0603DC-R33XJRW

Part Number
0603DC-R33XJRW
Manufacturer COILCRAFT
Other Part Numbers
2457-0603DC-R33XJRW-ND
2457-0603DC-R33XJRW
2457-0603DC-R33XJRWTR-ND
Description FIXED IND 330NH 300MA 2.93OHM SM
Detailed Description 330 nH Unshielded Drum Core, Wirewound Inductor 300 mA 2.93Ohm Max 0603 (1608 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0603DC
Packaging
Strip
Part Status Active
Tolerance ±5%
Package / Case 0603 (1608 Metric)
Size / Dimension 0.067" L x 0.039" W (1.70mm x 0.99mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 2.93Ohm Max
Frequency - Self Resonant 700MHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 100 MHz
Supplier Device Package 0603
Height - Seated (Max) 0.035" (0.89mm)
Inductance 330 nH
Current Rating (Amps) 300 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 0603DC-R33XJRW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
