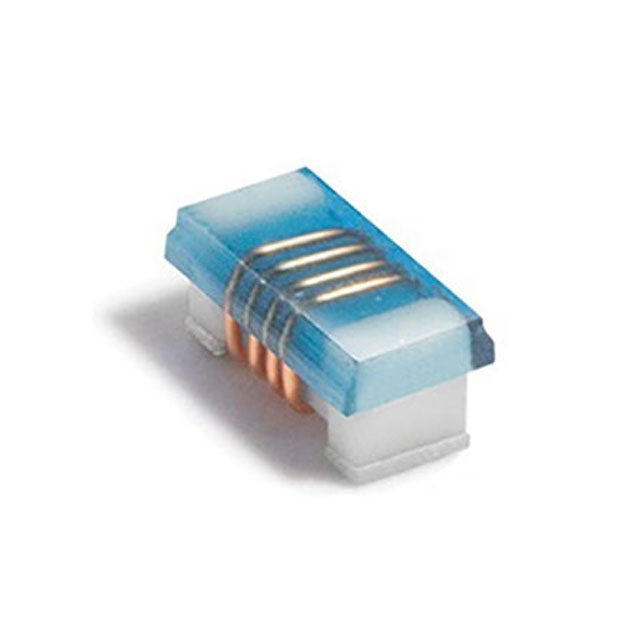

0603DC-8N2XGRW _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	0603DC-8N2XGRW
Manufacturer	COILCRAFT
Other Part Numbers	2457-0603DC-8N2XGRW-ND 2457-0603DC-8N2XGRW 2457-0603DC-8N2XGRWTR-ND
Description	FIXED IND 8.2NH 2.45A 53MOHM SMD
Detailed Description	8.2 nH Unshielded Drum Core, Wirewound Inductor 2.45 A 53mOhm Max 0603 (1608 Metric)
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		COILCRAFT
Series		0603DC
Packaging		Strip
Part Status		Active
Tolerance		±2%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.067" L x 0.039" W (1.70mm x 0.99mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		53mOhm Max
Q @ Freq		93 @ 900MHz
Frequency - Self Resonant		6.25GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0603
Height - Seated (Max)		0.035" (0.89mm)
Inductance		8.2 nH
Current Rating (Amps)		2.45 A

RESOURCE TYPE		LINK
Datasheets		0603DC-8N2XGRW

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
