056.30050.00-B

Part Number
056.30050.00-B
Manufacturer Astrodyne TDI
Other Part Numbers
3109-056.30050.00-B-ND
3109-056.30050.00-B

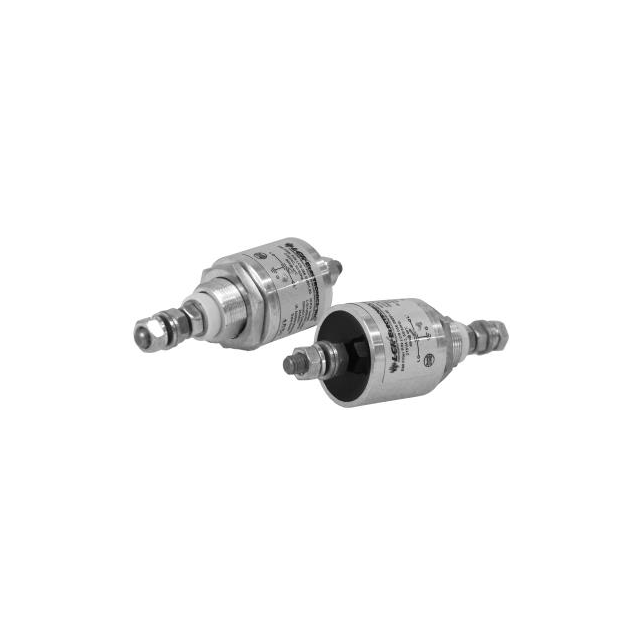

Description FEED-THROUGH FILTER
Detailed Description Feed Through Capacitor 2000V (2kV) 300 A Axial - Threaded Terminals
Datasheet Datasheet

Product Attributes

Category
Manufacturer Astrodyne TDI
Series
056
Packaging
Box
Part Status Active
Voltage - Rated 2000V (2kV)
Package / Case Axial - Threaded Terminals
Size / Dimension 2.362" Dia x 7.323" L (60.00mm x 186.00mm)
Mounting Type Bolt Mount
Thread Size M12
Operating Temperature -40°C ~ 85°C
Current 300 A

Documents & Media

RESOURCE TYPE LINK
Datasheets 056.30050.00-B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9530
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
