Part Number
0524651870
Manufacturer Molex
Other Part Numbers
900-0524651870TR-ND
900-0524651870TR
52465-1870
524651870

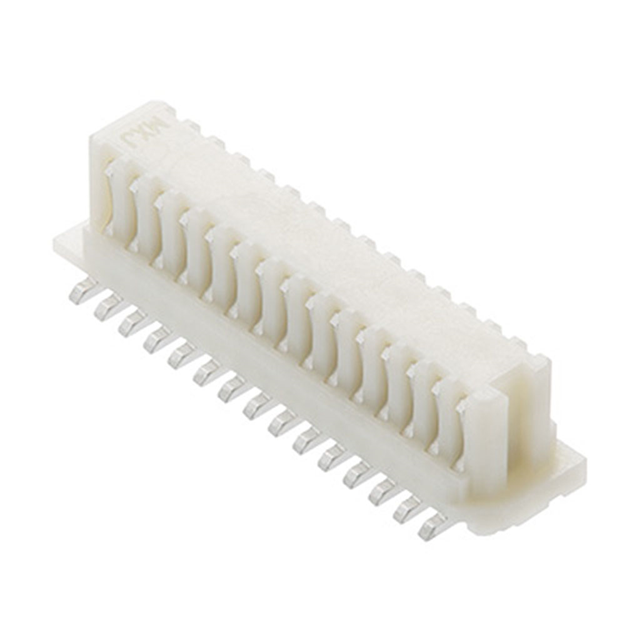

Description 0.8 BTB HSG ASSY SMT 18CKT EMBST
Detailed Description 18 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin
Manufacturer Standard Lead Time 17 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Molex
Series
SlimStack 52465
Packaging
Tape & Reel (TR)
Part Status Active
Features Board Guide
Connector Type Receptacle, Center Strip Contacts
Contact Finish Tin
Mounting Type Surface Mount
Number of Positions 18
Pitch 0.031" (0.80mm)
Height Above Board 0.140" (3.55mm)
Contact Finish Thickness 39.4µin (1.00µm)
Mated Stacking Heights 4.5mm
Number of Rows 2

Documents & Media

RESOURCE TYPE LINK
Datasheets 0524651870
Datasheets 52465 Series Location 13/Jun/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
