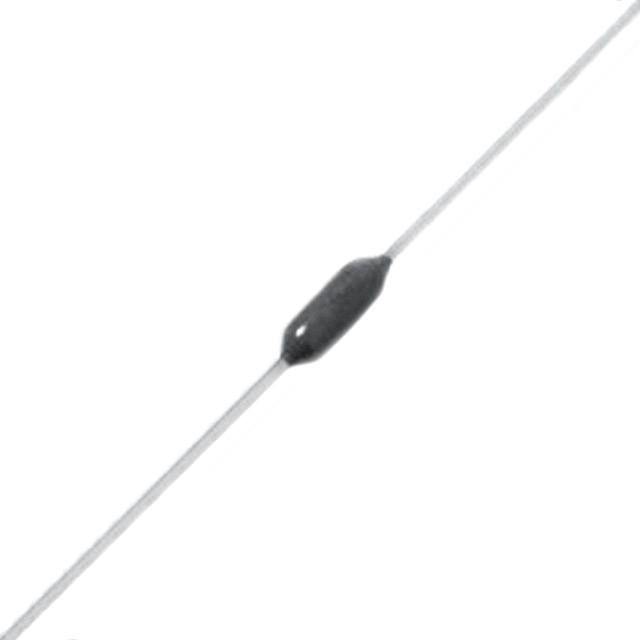

047101.5NRT1

Part Number
047101.5NRT1
Manufacturer Wickmann / Littelfuse
Other Part Numbers
047101.5NRT1-ND
047101.5NRT1-
047101.5NT1
47101.5NRT1
Description FUSE BRD MNT 1.5A 125VAC/VDC AXL
Detailed Description 1.5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wickmann / Littelfuse
Series
PICO® II 471
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case Axial
Size / Dimension 0.110" Dia x 0.280" L (2.80mm x 7.11mm)
Fuse Type Board Mount (Cartridge Style Excluded)
Mounting Type Through Hole
Operating Temperature -55°C ~ 125°C
Response Time Slow Blow
Approval Agency CSA, PSE, UR
DC Cold Resistance 0.054 Ohms
Breaking Capacity @ Rated Voltage 50A
Current Rating (Amps) 1.5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Melting I²t 1.61

Documents & Media

RESOURCE TYPE LINK
Datasheets 047101.5NRT1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.10.0040
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
