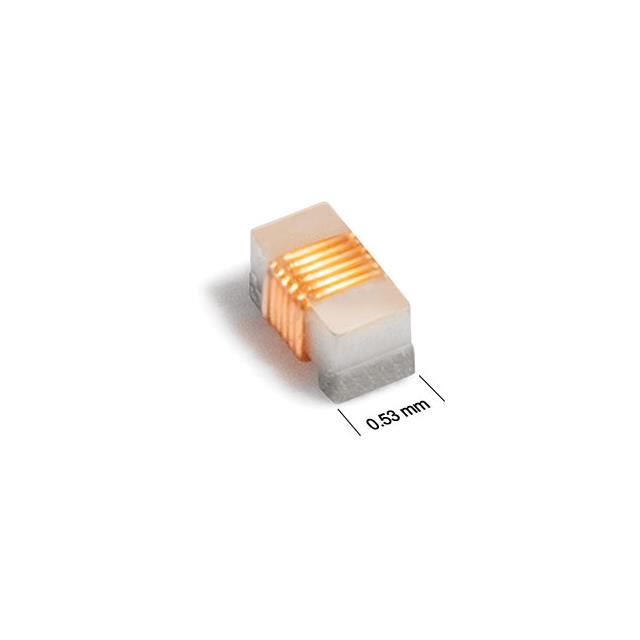

0302CS-6N5XJRW

Part Number
0302CS-6N5XJRW
Manufacturer COILCRAFT
Other Part Numbers
2457-0302CS-6N5XJRW-ND
2457-0302CS-6N5XJRW
Description FIXED IND 6.5NH 620MA 200MOHM SM
Detailed Description 6.5 nH Unshielded Inductor 620 mA 200mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0302CS
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case Nonstandard
Size / Dimension 0.034" L x 0.021" W (0.86mm x 0.53mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 200mOhm Max
Q @ Freq 56 @ 900MHz
Frequency - Self Resonant 8.19GHz
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Height - Seated (Max) 0.018" (0.45mm)
Inductance 6.5 nH
Current Rating (Amps) 620 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 0302CS-6N5XJRW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
