0251002.M

Part Number
0251002.M
Manufacturer Wickmann / Littelfuse
Other Part Numbers
F828-ND
0251002M
251002
M251002
F828
251002(BULK)
251 002
0251002
0251002.M-
251 002(BULK)

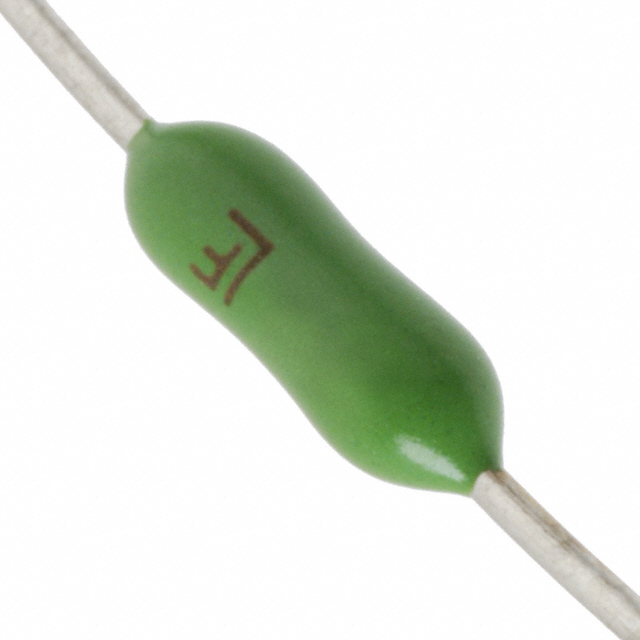

Description FUSE BRD MNT 2A 125VAC/VDC AXIAL
Detailed Description 2 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wickmann / Littelfuse
Series
PICO® II 251
Packaging
Bulk
Part Status Obsolete
Package / Case Axial

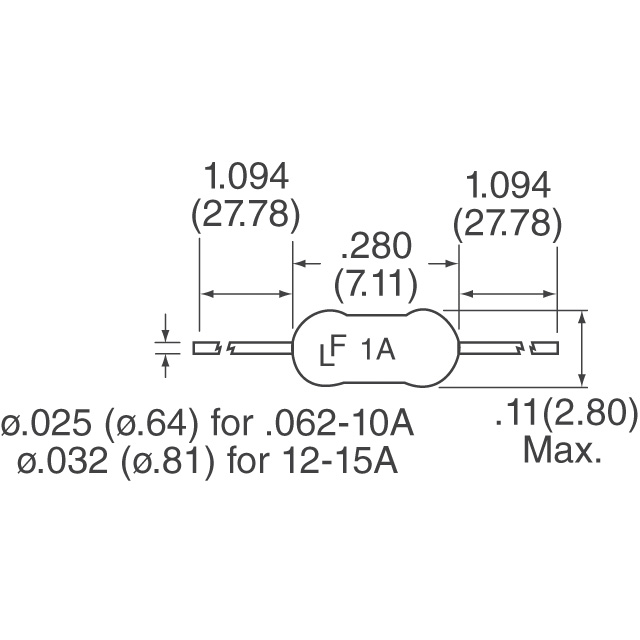

Size / Dimension 0.110" Dia x 0.280" L (2.80mm x 7.11mm)
Fuse Type Board Mount (Cartridge Style Excluded)
Mounting Type Through Hole
Operating Temperature -55°C ~ 125°C
Response Time Fast Blow
Approval Agency CCC, CSA, cURus, PSE, TUV
DC Cold Resistance 0.0473 Ohms
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Current Rating (Amps) 2 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Melting I²t 0.405

Documents & Media

RESOURCE TYPE LINK
Datasheets 0251002.M
Datasheets 0251 Series Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.10.0040
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
