0230003.DRT2SW

Part Number
0230003.DRT2SW
Manufacturer Wickmann / Littelfuse
Other Part Numbers
0230003.DRT2SW-ND
230003SDRT2
230003ST2W
230003ST2
230003.ST2

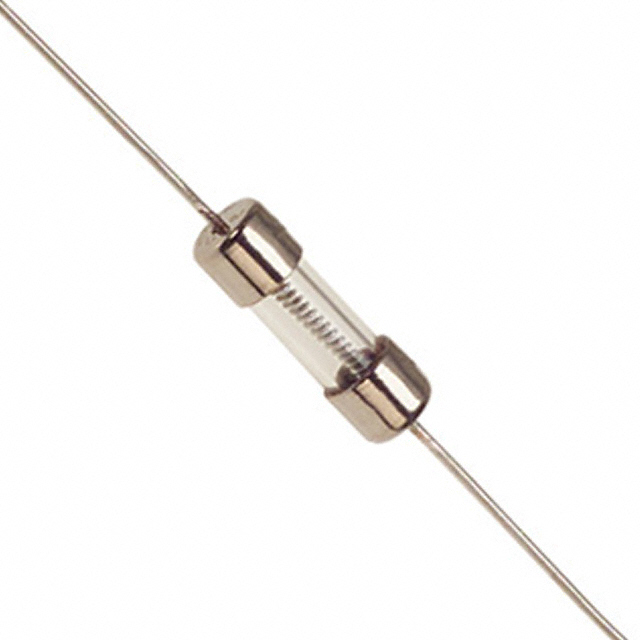

Description FUSE GLASS 3A 250VAC AXIAL
Detailed Description 3 A 250 V AC DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wickmann / Littelfuse
Series
230
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case Cartridge, Non-Standard (Axial)
Size / Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
Fuse Type Cartridge, Glass
Mounting Type Through Hole
Operating Temperature -55°C ~ 125°C
Response Time Slow Blow
Approval Agency CSA, METI, UL
DC Cold Resistance 0.038 Ohms
Breaking Capacity @ Rated Voltage 100A
Current Rating (Amps) 3 A
Voltage Rating - AC 250 V
Melting I²t 77

Documents & Media

RESOURCE TYPE LINK
Datasheets 0230003.DRT2SW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.10.0020
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
