0191640059 _ Quick Connects, Quick Disconnect Connectors_Terminals_Connectors, Interconnects_

+86-0755-8325-4547

0191640059

0191640059

Part Number	0191640059
Manufacturer	Molex
Other Part Numbers	23-0191640059-ND 191640059-E SC-2143 0191640059-E 19164-0059-E 019164-0059-E 19164-0059 019164-0059 WM18723 WM18723-ND 191640059 23-0191640059
Description	CONN QC RCPT 10-12AWG 0.250

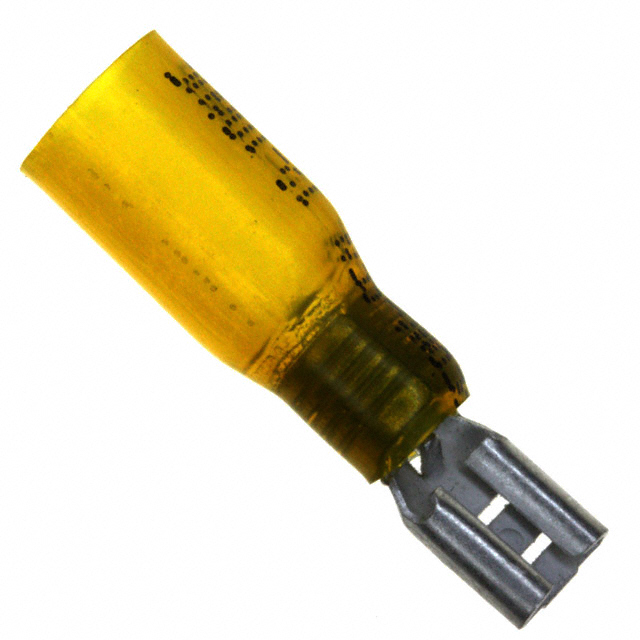

Detailed Description	0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Mating End Heat Shrink
Manufacturer Standard Lead Time	29 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Manufacturer		Molex
Series		Perma-Seal
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Tin
Color		Yellow
Mounting Type		Free Hanging (In-Line)
Wire Gauge		10-12 AWG
Insulation		Non-Mating End Heat Shrink
Terminal Type		Standard
Length - Overall		1.360" (34.54mm)
Termination		Crimp
Tab Thickness		0.032" (0.81mm)
Tab Width		0.250" (6.35mm)
Contact Material		Brass

Documents & Media

RESOURCE TYPE		LINK
Datasheets		0191640059
Datasheets		19164-0059 RoHS Cert of Compliance

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 145

Can ship immediately.
