0191640017

0191640017

Part Number
0191640017
Manufacturer Molex
Other Part Numbers
WM18429-ND
191640017-C
0191640017-C
19164-0017-C
019164-0017-C
WM18429-NDR
SAA-9261
191640017
191-64-0017-C
19164-0017
WM18429
019164-0017

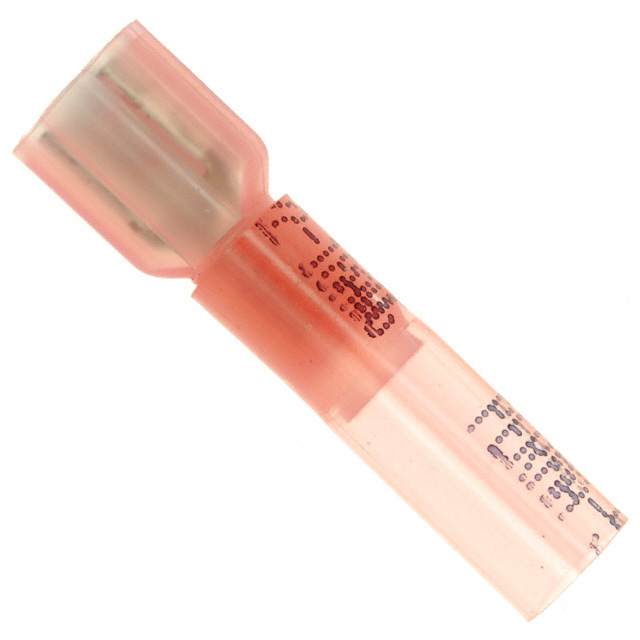

Description CONN QC RCPT 18-22AWG 0.250
Detailed Description 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated Heat Shrink
Manufacturer Standard Lead Time 4 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Molex
Series
Perma-Seal
Packaging
Bulk
Part Status Active
Gender Female
Contact Finish Tin
Color Red
Mounting Type Free Hanging (In-Line)
Wire Gauge 18-22 AWG
Insulation Fully Insulated Heat Shrink
Terminal Type Standard
Length - Overall 1.630" (41.40mm)
Termination Crimp
Tab Thickness 0.032" (0.81mm)
Tab Width 0.250" (6.35mm)
Contact Material Brass
Insulation Diameter 0.286" (7.26mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets 0191640017
Datasheets 0190440069 Drawing/Datasheet
Datasheets 19164-0017 RoHS Cert of Compliance
Datasheets 1916400yy Heat-Shrink Tubing 02/Dec/2021
Datasheets Mult Devs Second Source 13/Jan/2022
Datasheets 0191640017

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 37596

Can ship immediately.
