0191640015

0191640015

Part Number
0191640015
Manufacturer Molex
Other Part Numbers
23-0191640015-ND
191640015-C
0191640015-C
19164-0015-C
019164-0015-C
WM18428-NDR
19164-0015
191640015
WM18428
019164-0015
SAA-9260
23-0191640015
WM18428-ND
191-64-0015-C
Description CONN QC TAB 18-22AWG 0.250 CRIMP

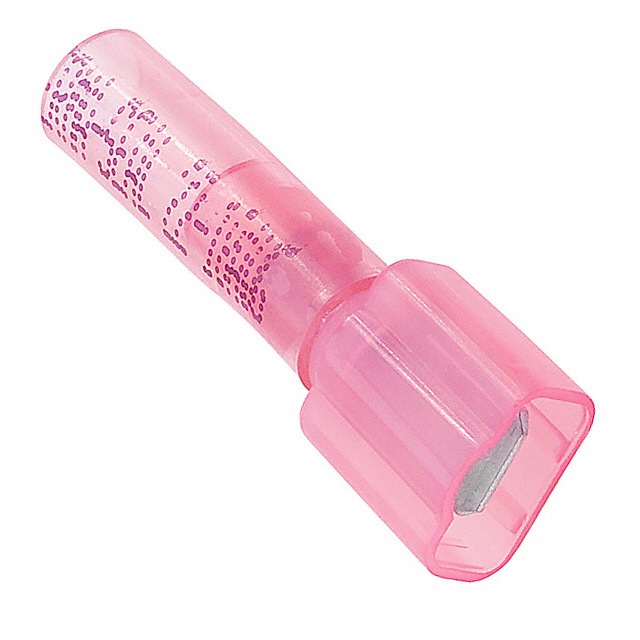

Detailed Description 0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated Heat Shrink
Manufacturer Standard Lead Time 34 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Molex
Series
Perma-Seal
Packaging
Bulk
Part Status Active
Gender Male
Contact Finish Tin
Color Red
Mounting Type Free Hanging (In-Line)
Wire Gauge 18-22 AWG
Insulation Fully Insulated Heat Shrink
Terminal Type Standard
Length - Overall 1.590" (40.39mm)
Termination Crimp
Tab Thickness 0.032" (0.81mm)
Tab Width 0.250" (6.35mm)
Contact Material Copper
Insulation Diameter 0.170" (4.32mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets 0191640015
Datasheets 19164-0015 RoHS Cert of Compliance
Datasheets Mult Devs Second Source 13/Jan/2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 8205

Can ship immediately.
