0190700035

0190700035

Part Number	0190700035
Manufacturer	Molex
Other Part Numbers	WM6955TR-ND WM6955CT-ND WM6955TR 019070-0035 19070-0035 AA-226-38XT WM6955CT 190700035

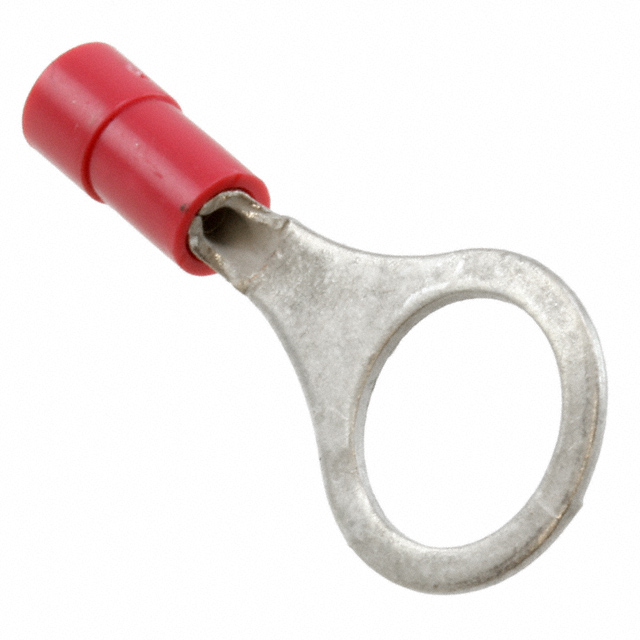

Description	CONN RING CIRC 18-22AWG #3/8
Detailed Description	Ring Terminal Connector 3/8 Stud Circular 18-22 AWG Crimp
Manufacturer Standard Lead Time	9 weeks

Product Attributes

Category		Connectors, Interconnects Terminals Ring Connectors
Manufacturer		Molex
Series		InsulKrimp
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Contact Finish		Electro-Tin
Color		Red
Mounting Type		Free Hanging (In-Line)
Wire Gauge		18-22 AWG
Insulation		Insulated
Thickness		0.031" (0.79mm)
Terminal Type		Circular
Stud/Tab Size		3/8 Stud
Length - Overall		1.259" (31.98mm)
Termination		Crimp
Material - Insulation		Poly-Vinyl Chloride (PVC)
Width - Outer Edges		0.544" (13.82mm)
Contact Material		Copper
Insulation Diameter		0.145" (3.68mm)

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
