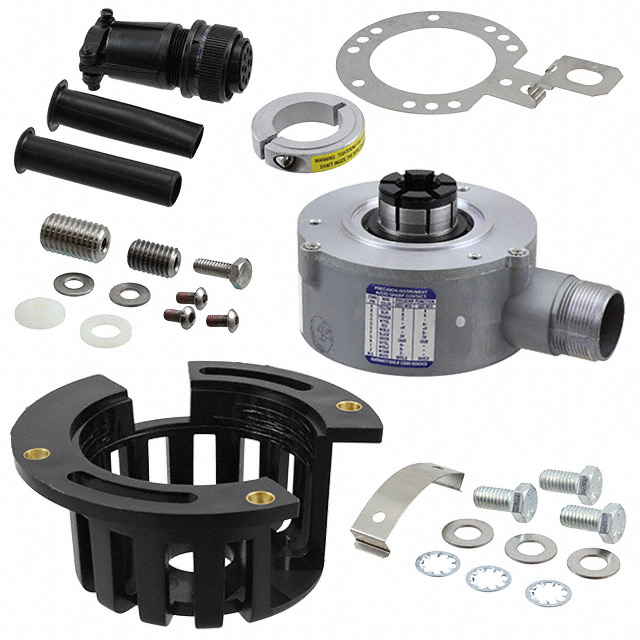

01070-172

01070-172

Part Number	01070-172
Manufacturer	Sensata Technologies – BEI Sensors
Other Part Numbers	1724-01070-172-ND 1724-01070-172 HS35F-100-R1-BS-1024-ABC-28V/V-SCS34-S-ND HS35F-100-R1-BS-1024-ABC-28V/V-SCS34-S
Description	ROTARY ENCODER OPTICAL 1024PPR
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Encoders - Industrial
Manufacturer		Sensata Technologies – BEI Sensors
Series		HS35
Packaging		Box
Part Status		Active
Output Type		Quadrature (Incremental)
Mounting Type		Chassis Mount, Motors
Orientation		User Selectable
Termination Style		Cable
Voltage - Supply		5V ~ 28V
Encoder Type		Optical
Detent		No
Pulses per Revolution		1024
Actuator Type		Hole for Shaft
Built in Switch		No
Rotational Life (Cycles Min)		7.5B

Documents & Media

RESOURCE TYPE		LINK
Datasheets		01070-172

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
