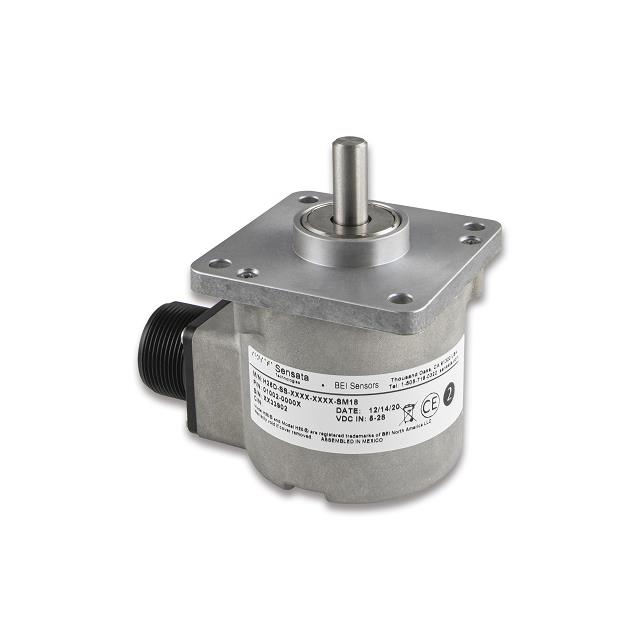

01002-7009

01002-7009

Part Number	01002-7009
Manufacturer	Sensata Technologies – BEI Sensors
Other Part Numbers	1724-01002-7009-ND XH25D-SS-1024-ABZC-15V/V-SM18 1724-1211 2266-01002-7009 XH25D-SS-1024-ABZC-15V/V-SM18-ND 01002-7009-ND 1724-01002-7009 1724-1211-ND
Description	ROTARY ENCODER OPTICAL 1024PPR
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Sensors, Transducers Encoders - Industrial
Manufacturer		Sensata Technologies – BEI Sensors
Series		XH25
Packaging		Bulk
Part Status		Active
Output Type		Quadrature with Index (Incremental)
Mounting Type		Chassis Mount
Orientation		User Selectable
Termination Style		Connector
Voltage - Supply		5V ~ 15V
Encoder Type		Optical
Detent		No
Pulses per Revolution		1024
Actuator Type		Shaft
Built in Switch		No
Rotational Life (Cycles Min)		200M

Documents & Media

RESOURCE TYPE		LINK
Datasheets		01002-7009
Datasheets		H25G Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 1

Can ship immediately.
